Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia

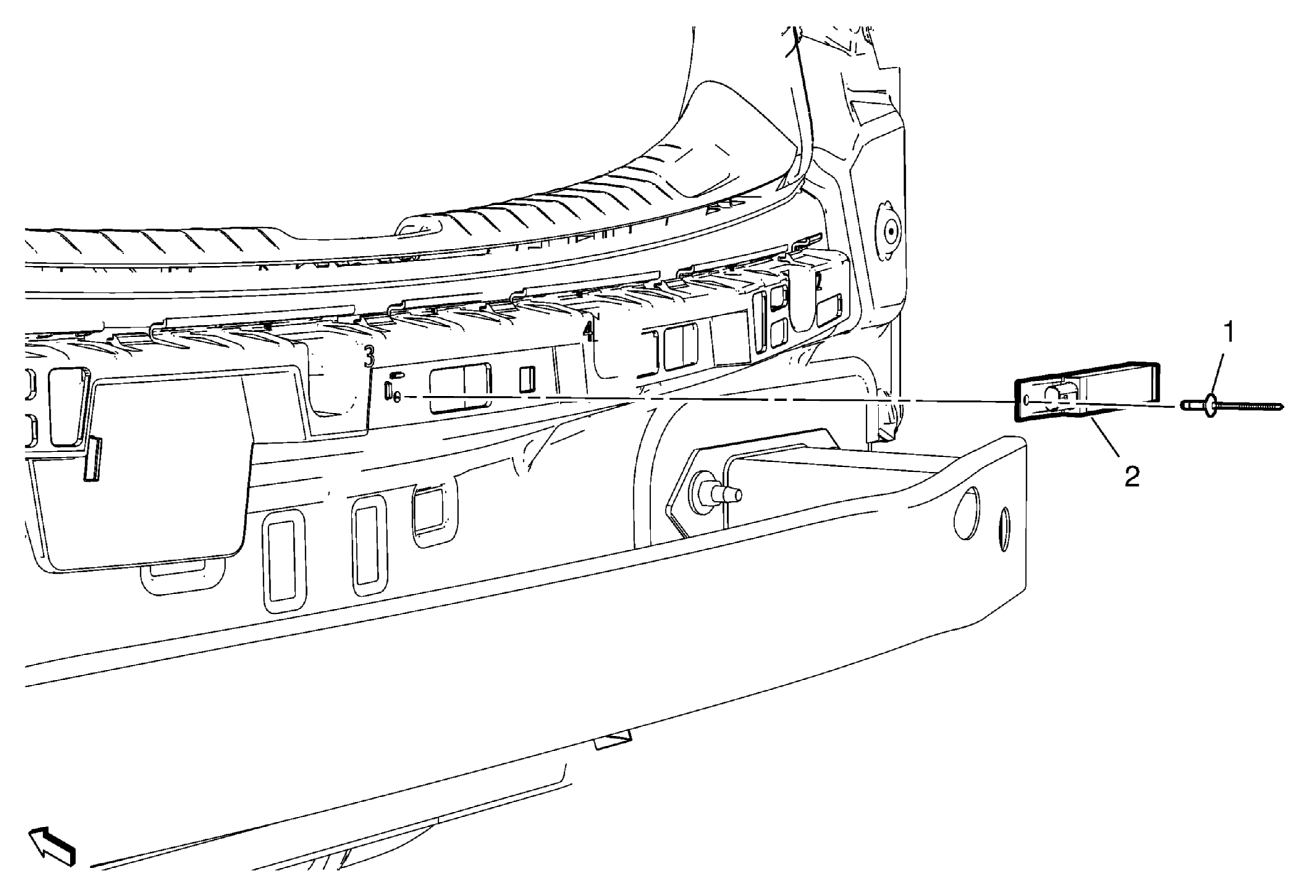

Fig 1: Ignition Lock Key Transmitter Antenna - Rear Bumper Fascia

GM3665621

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement (Notchback)Rear Bumper Fascia Replacement (Hatchback)

1

Ignition Lock Key Transmitter Antenna Rivet

Procedure

Drill out the rivet on the ignition lock key transmitter antenna.
Remove the ignition lock key transmitter antenna from the rear bumper fascia center bracket.
Position the ignition lock key transmitter antenna at the rear bumper fascia center bracket.
Rivet the ignition lock key transmitter antenna on the rear bumper fascia center bracket.

NOTE:

Use only original rivets.

2

Ignition Lock Key Transmitter Antenna
