Removal Procedure

  1. Remove the right fuel tank. Refer to Fuel Tank Replacement - Right Side .

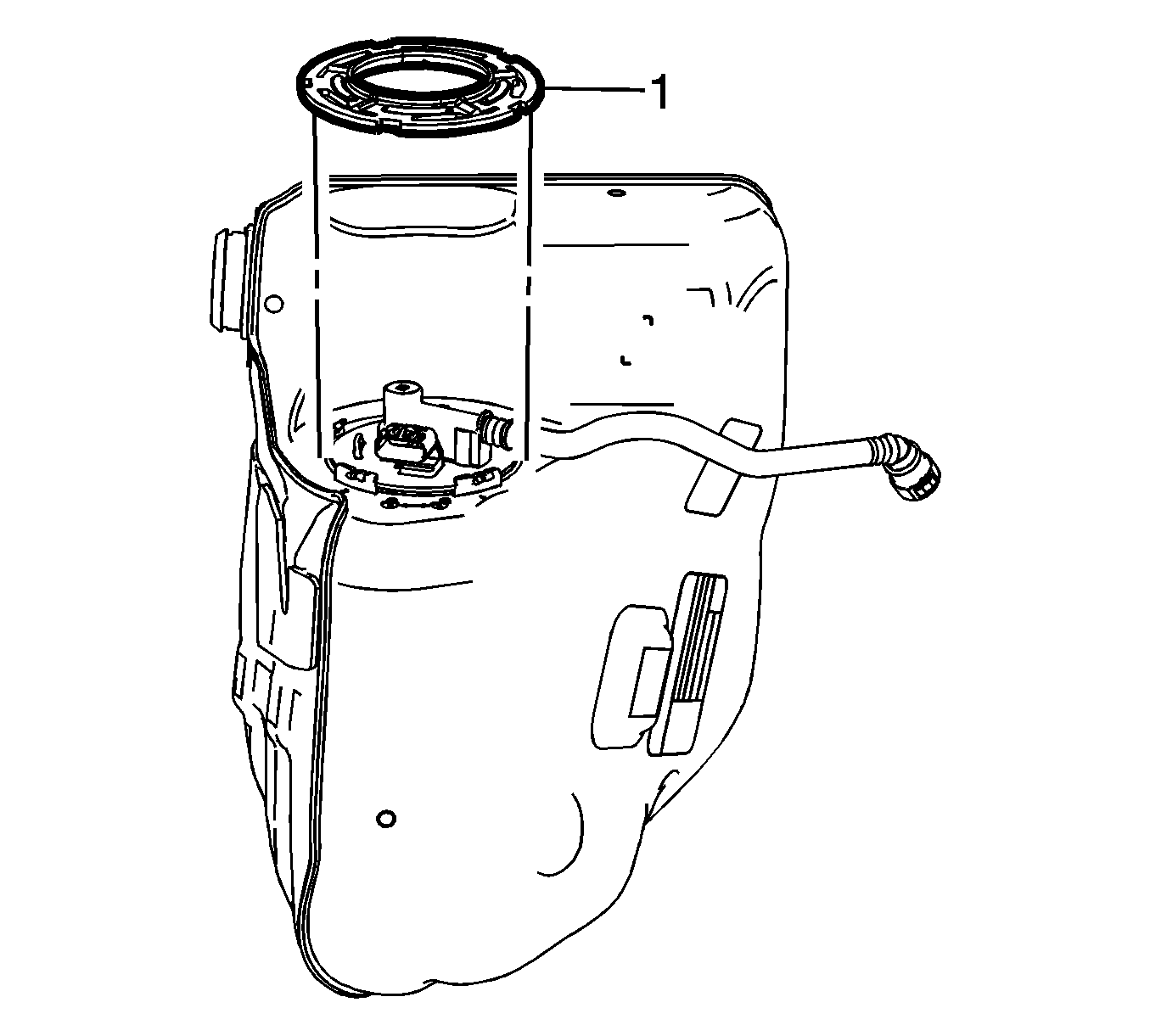

    2. Fig 1: Turn Fuel Sender Locking Ring
    GM3415301Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The fuel sender is spring loaded and will spring upward when the locking ring is removed.

  2. Using the CH-48482  lock ring tool, turn the fuel sender locking ring (1) counterclockwise and remove lock ring.

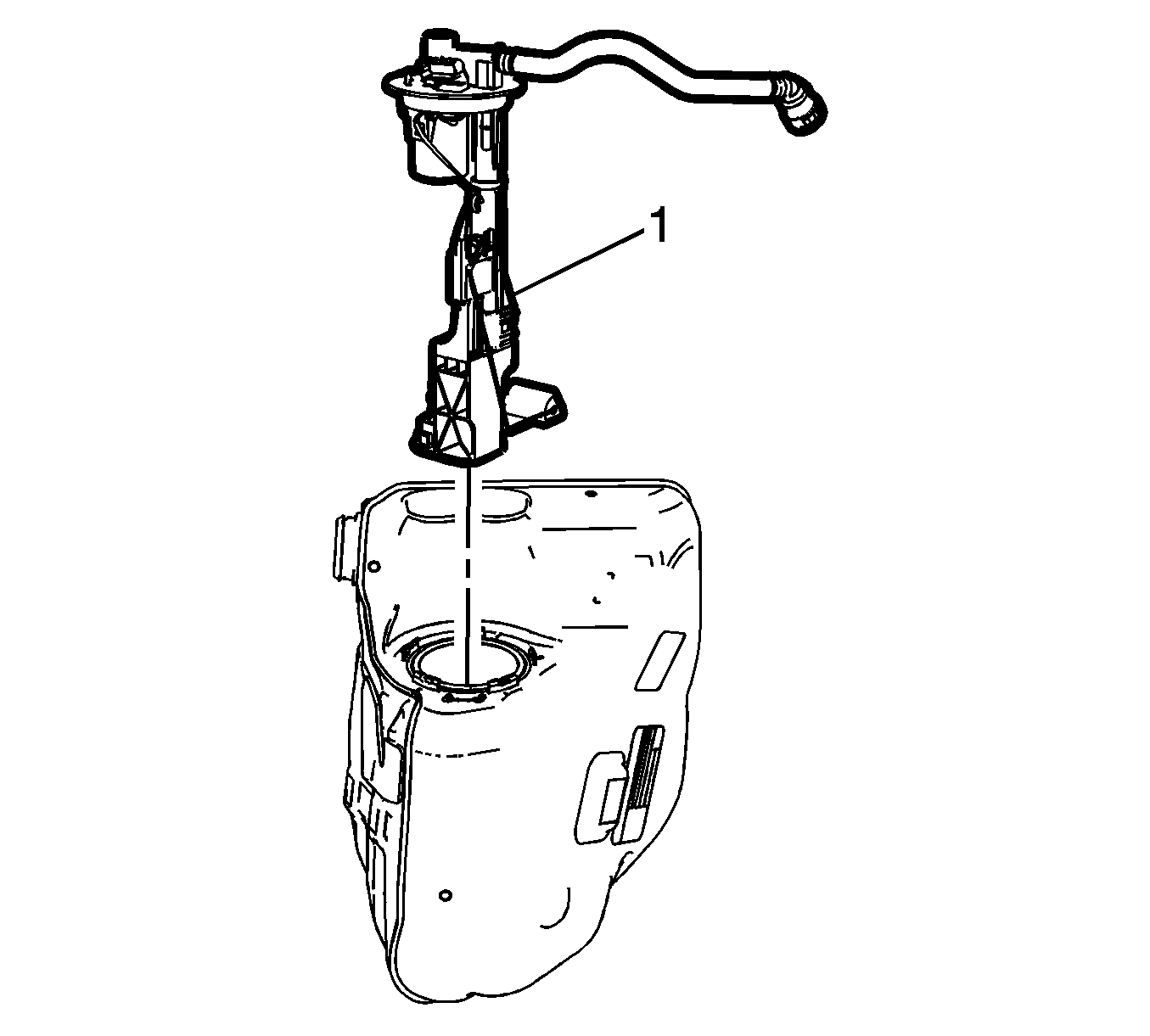

    3. Fig 2: Fuel Sender
    GM3415300Courtesy of GENERAL MOTORS COMPANY
  3. Lift the fuel sender (1) carefully to disconnect the lines from the fuel sender (1) inside the tank.
  4. Remove the fuel sender (1) from the tank.
