Vehicle Performance Data Recorder Replacement

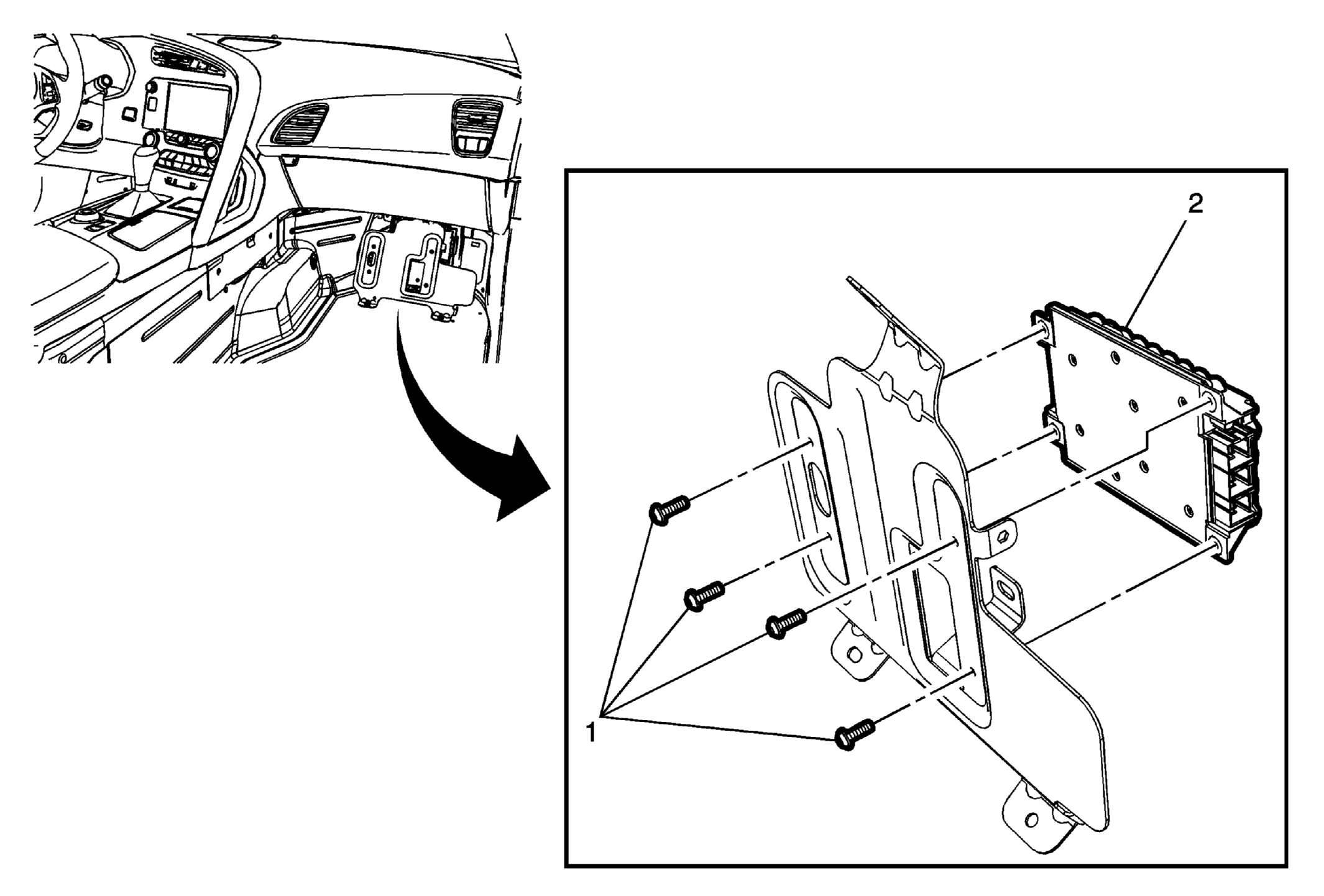

Fig 1: Vehicle Performance Data Recorder
GM3391368Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the vehicle performance data recorder bracket. Refer to Vehicle Performance Data Recorder Bracket Replacement .
1 Vehicle Performance Data Recorder Fasteners (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
1.2 N.m (11 lb in)
2 Vehicle Performance Data Recorder
Procedure
Reprogram the data recorder after installation. Refer to Control Module References .
