Front Side Door Window Switch Replacement

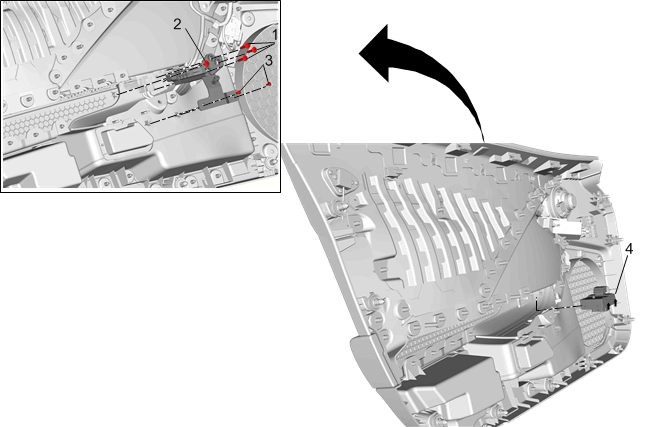

Fig 1: Front Side Door Window Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim- - passenger door. Refer to Front Side Door Trim Replacement (Driver Side)Front Side Door Trim Replacement (Passenger Side) .
1	Front Side Door Pull Handle Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Front Side Door Armrest Bracket Fastener Tighten 1.5 N.m (13 lb in)
3	Front Side Door Trim Panel Fastener (Qty: 2) Tighten 0.7 N.m (6 lb in)
4	Front Side Door Window Switch Assembly Procedure Using a plastic pry tool, gently pry on the sides to release the switch. Disconnect the electrical connectors. Refer to Control Module References for programming and set up procedures, if required.
