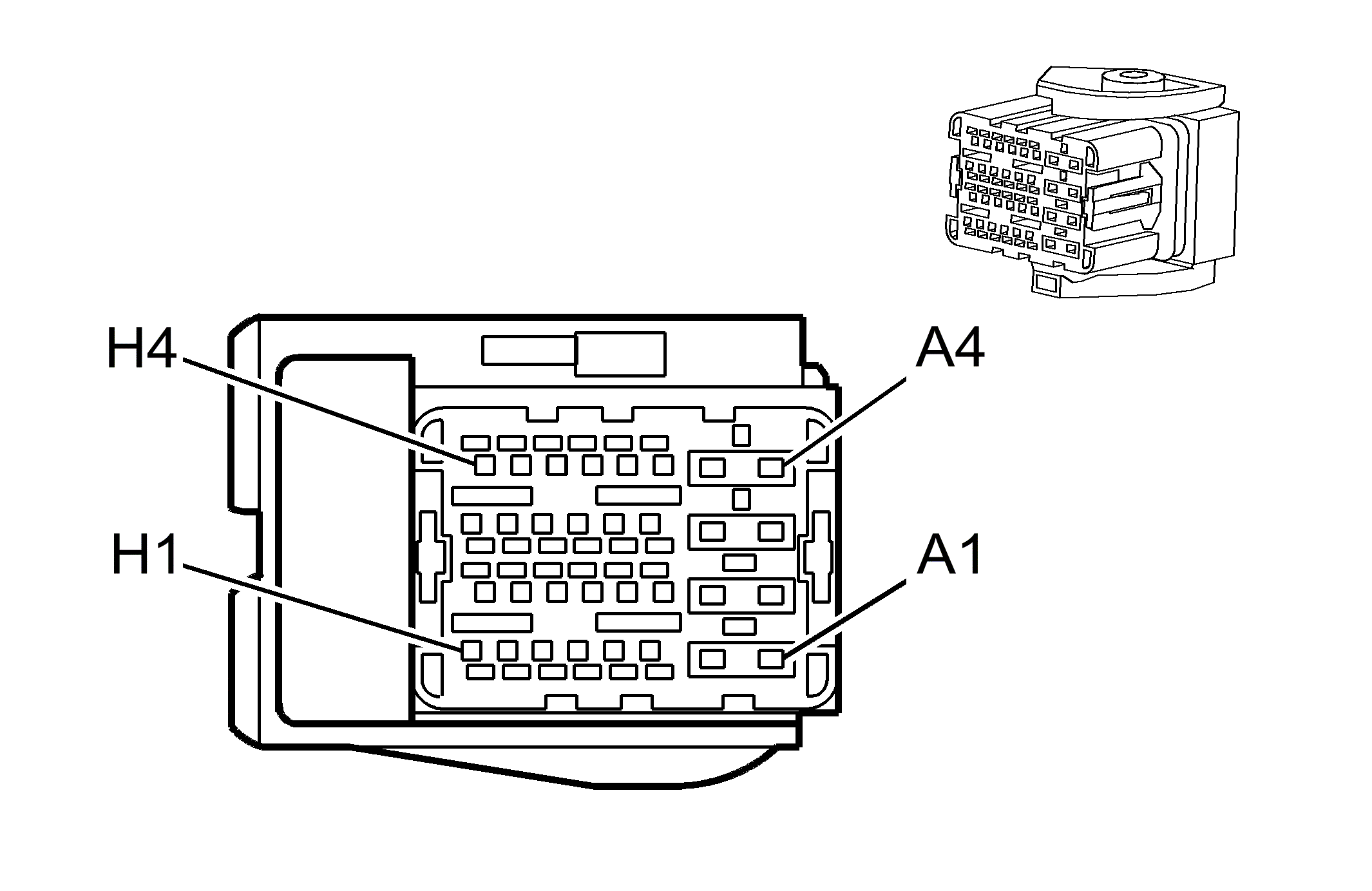

K20 Engine Control Module X1
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: RH24FGY-RZ8 - R-RH
- Service Connector: Service by Harness - See Parts Catalog
- Description: 32-Way F, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Service by Harness - See Parts Catalog |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A1 |
- |
PK |
AC04 |
Engine Controls Ignition Relay Control |
I |
- |
| A2 |
- |
D-BU |
AC12 |
Fuel Injector Control (1) |
I |
- |
| A3 |
- |
RD |
AC13 |
Fuel Injector Control (2) |
I |
- |
| A4 |
- |
YE |
AC14 |
Fuel Injector Control (3) |
I |
- |
| B1-B2 |
- |
- |
- |
Not Occupied |
- |
- |
| B3 |
- |
OG |
AB41 |
EVAP Canister Vent Solenoid Control |
I |
- |
| B4 |
- |
PU |
AC15 |
Fuel Injector Control (4) |
I |
- |
| C1 |
- |
- |
- |
Not Occupied |
- |
- |
| C2 |
- |
D-BU |
AC21 |
Fuel Pump Relay Control |
I |
- |
| C3 |
- |
L-BU |
AC57 |
Ignition Control (3) |
I |
- |
| C4 |
- |
D-GN |
AC58 |
Ignition Control (4) |
I |
- |
| D1-D2 |
- |
- |
- |
Not Occupied |
- |
- |
| D3 |
- |
L-BU |
AC56 |
Ignition Control (2) |
I |
- |
| D4 |
- |
RD |
AC55 |
Ignition Control (1) |
I |
- |
| E1 |
- |
- |
- |
Not Occupied |
- |
- |
| E2 |
- |
YE |
AC23 |
Throttle Body Relay Supply Voltage |
I |
- |
| E3-F3 |
- |
- |
- |
Not Occupied |
- |
- |
| F4 |
- |
PK |
AC67 |
EVAP Canister Purge Solenoid Control |
I |
- |
| G1-G3 |
- |
- |
- |
Not Occupied |
- |
- |
| G4 |
- |
D-GN |
AC87 |
Ignition Main Relay Supply Voltage |
I |
- |
| H1 |
- |
PK |
AC74 |
Throttle Actuator Control Close |
I |
- |
| H2 |
- |
D-GN |
AC28 |
Heated Oxygen Sensor Low Signal Bank 1 Sensor (1) |
I |
- |
| H3 |
- |
L-BU |
AC24 |
Throttle Body Relay Control |
I |
- |
| H4 |
- |
D-BU |
AC75 |
Throttle Actuator Control Open |
I |
- |
