K9 Body Control Module X1

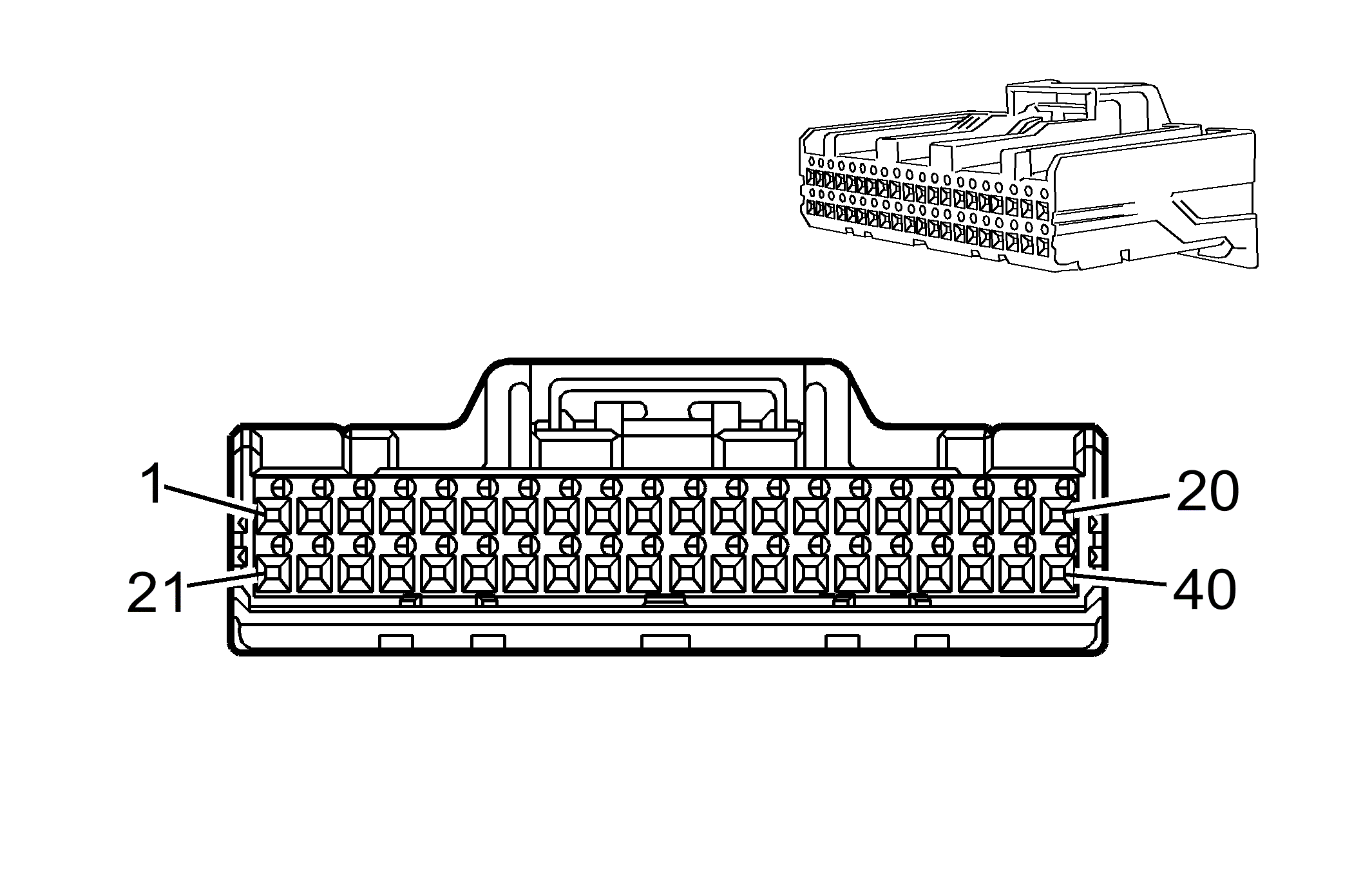

GM4092039Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: TH40FW-NH
  • Service Connector: Service by Harness - See Parts Catalog
  • Description: 40-Way F 025 Series (NA)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I Not Available Not Available Not Available Service by Harness - See Parts Catalog Not Available Not Available Not Available
Pin Size Color Circuit Function Terminal Type ID Option
1 - PU PD34 Remote Function Actuator Receive Signal I ATG
2 - BN PD33 Remote Function Actuator Supply Voltage I ATG
3 - BK PD35 Remote Function Actuator Return I ATG
4 - - - Not Occupied - -
5 - L-BU RA40 Multi Remote Entry Signal I CWM
6-7 - - - Not Occupied - -
8 - PU PD12 Driver Door Lock Switch Unlock Signal I -
9 - RD PD11 Driver Door Lock Switch Lock Signal I -
10 - D-BU DA20 Accessory/Run Ignition Voltage I -
11 - D-GN/RD NA03 Rear Defog Switch Signal I -
12 - RD PD38 Stop Lamp Supply Voltage I -
13 - PK PD17 Door Lock Key Switch Lock Signal I -
14 - BK PD28 Door Lock Key Switch Unlock Signal I -
15 - PU PD06 Turn Signal/Multifunction Switch Input Signal (1) I -
16 - D-GN PD07 Turn Signal/Multifunction Switch Input Signal (2) I -
17 - PK PD08 Turn Signal/Multifunction Switch Input Signal (3) I -
18 - D-BU PD09 Turn Signal/Multifunction Switch Input Signal (4) I -
19 - BN PD10 Turn Signal/Multifunction Switch Input Signal (5) I -
20 - - - Not Occupied - -
21 - PK IA02 CAN Bus High Serial Data (-) I -
22 - D-BU IA01 CAN Bus High Serial Data (+) I -
23 - OG DA19 Run/Crank Ignition Voltage I -
24 - WH PD31 Key In Ignition Switch Signal I -
25 - OG PD01 Turn Signal/Multifunction Switch Output Signal (1) I -
26 - RD PD02 Turn Signal/Multifunction Switch Output Signal (2) I -
27 - WH PD03 Turn Signal/Multifunction Switch Output Signal (3) I -
28 - YE PD04 Turn Signal/Multifunction Switch Output Signal (4) I -
29 - BN PD05 Turn Signal/Multifunction Switch Output Signal (5) I -
30-31 - - - Not Occupied - -
32 - D-BU LD01 Hazard Switch Signal I -
33 - BN HA07 Blower Motor On/Off Switch Signal I -
34 - YE HA20 A/C Request Switch Signal I -
35 - PK HA12 EVAP Core Temperature Sensor Signal I -
36 - L-GN PF03 Immobilizer Transmit I -
37 - GY PF25 Linear Interconnect Network Bus I -
38 - RD PF04 Security Indicator Control I -
39 - - - Not Occupied - -
40 - PK PF02 Immobilizer Receive I -
