Engine Exhaust Flow Control

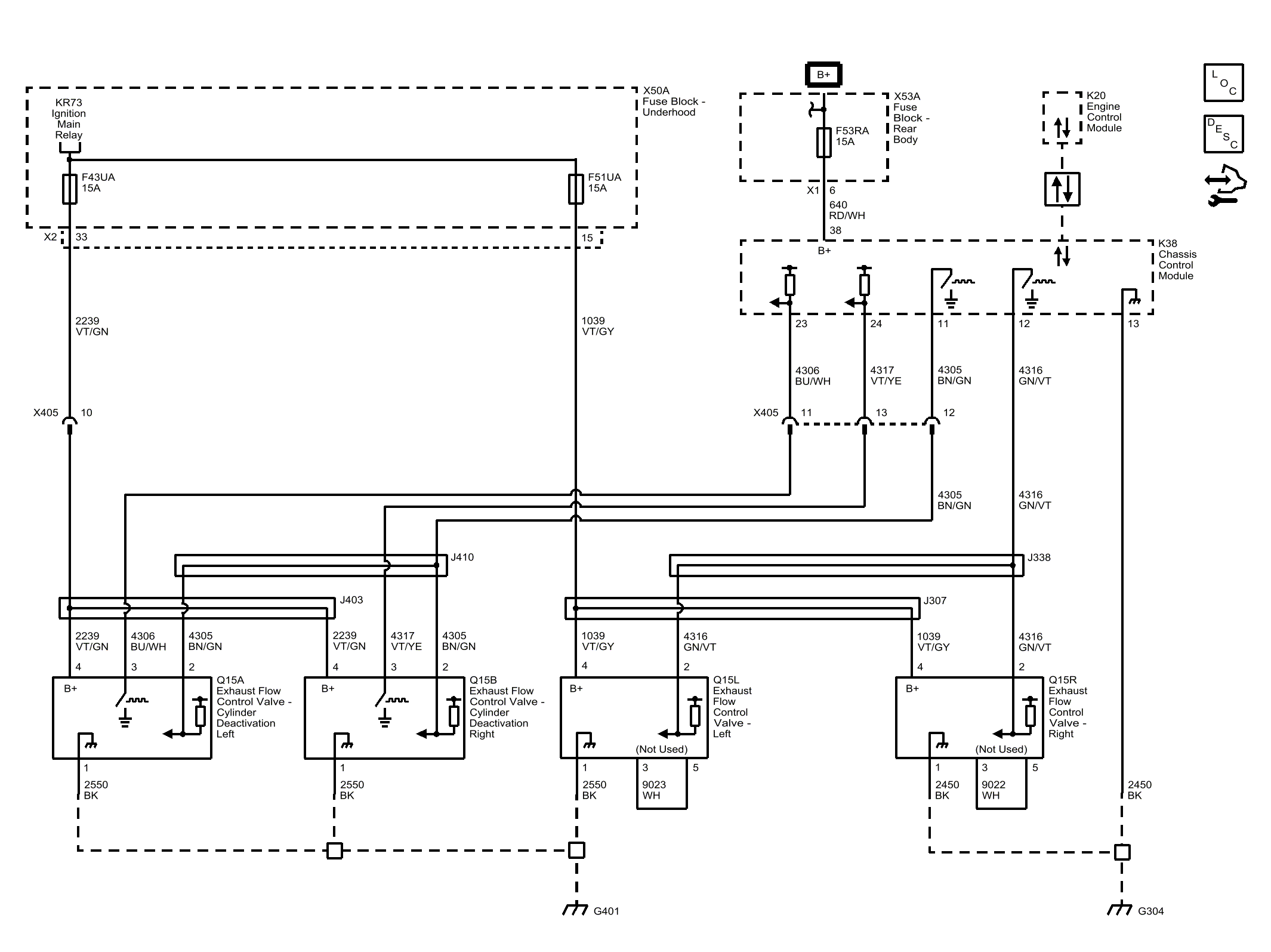

Fig 1: Engine Exhaust Flow Control

GM4447160

Courtesy of GENERAL MOTORS COMPANY
