Low Frequency Rear Compartment Antenna Replacement

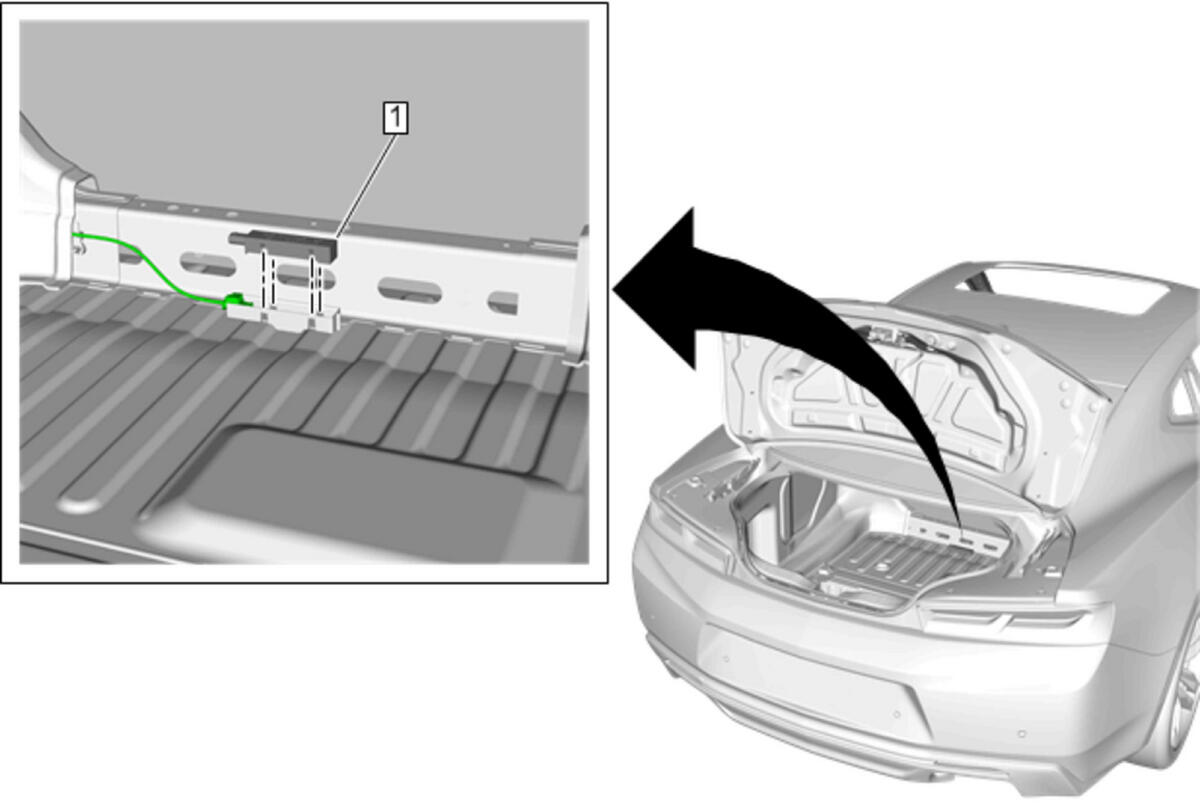

Fig 1: Low Frequency Rear Compartment Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Compartment Floor Panel Front Trim. Refer to Rear Compartment Floor Panel Front Trim Replacement
1	Low Frequency Rear Compartment Antenna Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Remove Rear Compartment Floor Panel Front Trim. Refer to Rear Compartment Floor Panel Front Trim Replacement

Low Frequency Rear Compartment Antenna

Procedure
