Low Frequency Instrument Panel Antenna Replacement

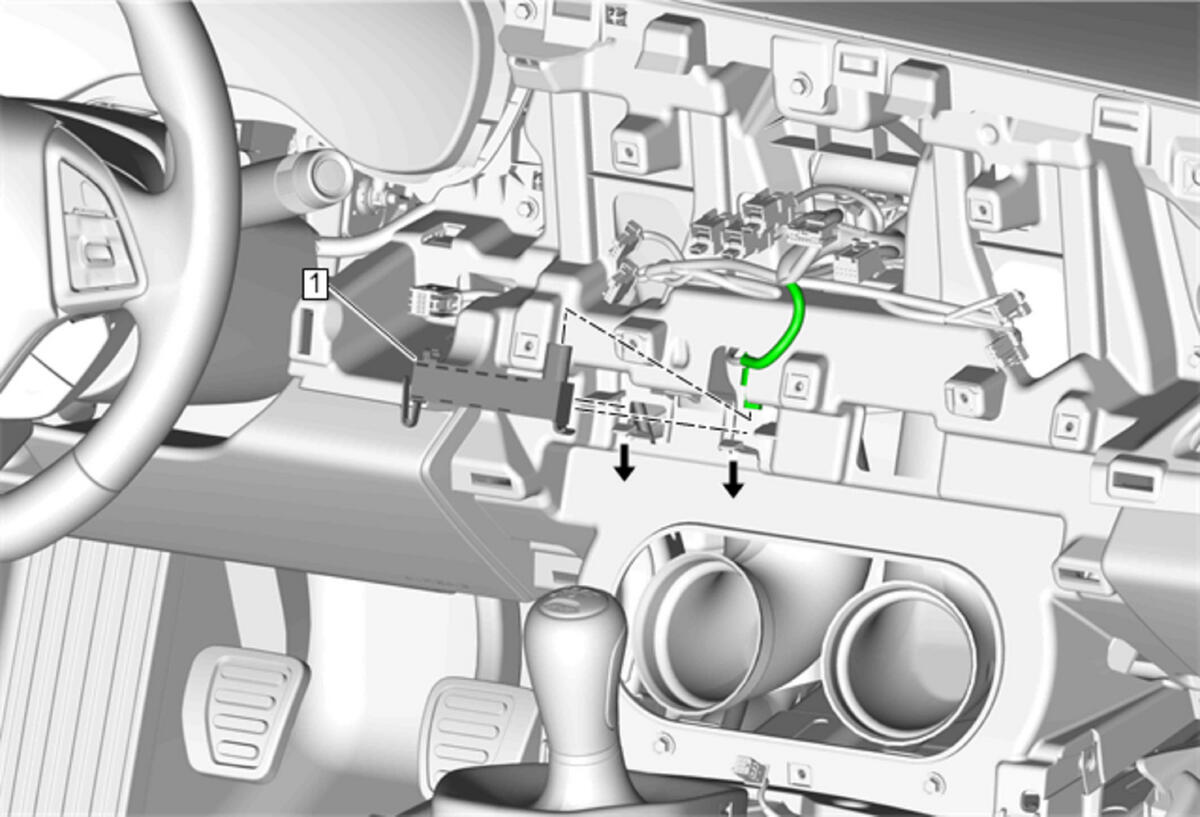

Fig 1: Low Frequency Instrument Panel Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Heater and Air Conditioning User Interface Control. Refer to Heater and Air Conditioning User Interface Control Replacement
1	Low Frequency Instrument Panel Antenna Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Remove Heater and Air Conditioning User Interface Control. Refer to Heater and Air Conditioning User Interface Control Replacement

Low Frequency Instrument Panel Antenna

Procedure
