Rear Parking Assist Alarm Sensor Replacement

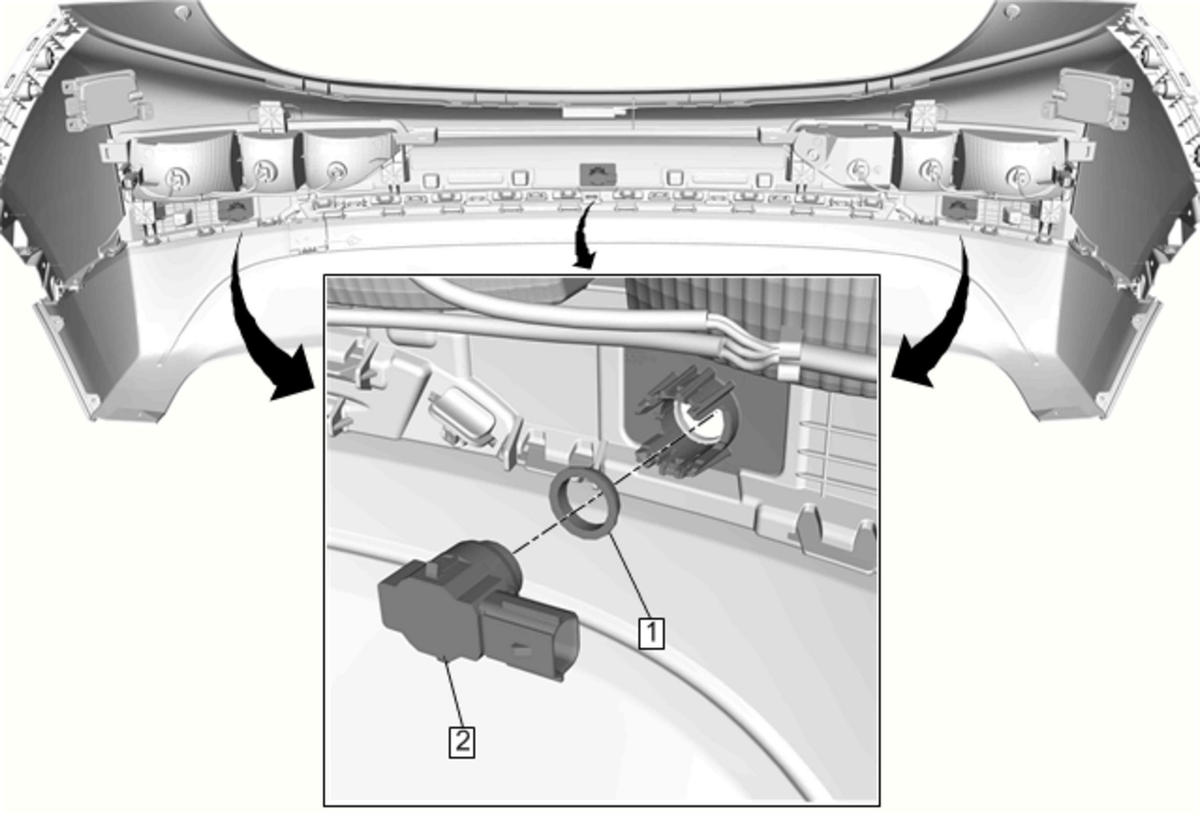

Fig 1: Rear Parking Assist Alarm Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement
1	Rear Parking Assist Alarm Sensor Ring
2	Rear Parking Assist Alarm Sensor CAUTION: When painting the park assist sensors, DO NOT exceed a paint thickness of 80-120 micrometer. The overall thickness of the paint coat on the park assist sensors should be between 80-120 micrometer. If this paint thickness is exceeded, it may result in poor functioning of the parking assist sensors. Procedure Disconnect the electrical connector. Lift the locking tabs on the housing and remove the parking assist alarm sensor.

Callout

Component Name

Preliminary Procedure
Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement

Rear Parking Assist Alarm Sensor Ring

Rear Parking Assist Alarm Sensor

CAUTION:

When painting the park assist sensors, DO NOT exceed a paint thickness of 80-120 micrometer. The overall thickness of the paint coat on the park assist sensors should be between 80-120 micrometer. If this paint thickness is exceeded, it may result in poor functioning of the parking assist sensors.

Procedure

Disconnect the electrical connector.
Lift the locking tabs on the housing and remove the parking assist alarm sensor.
