Battery State of Charge

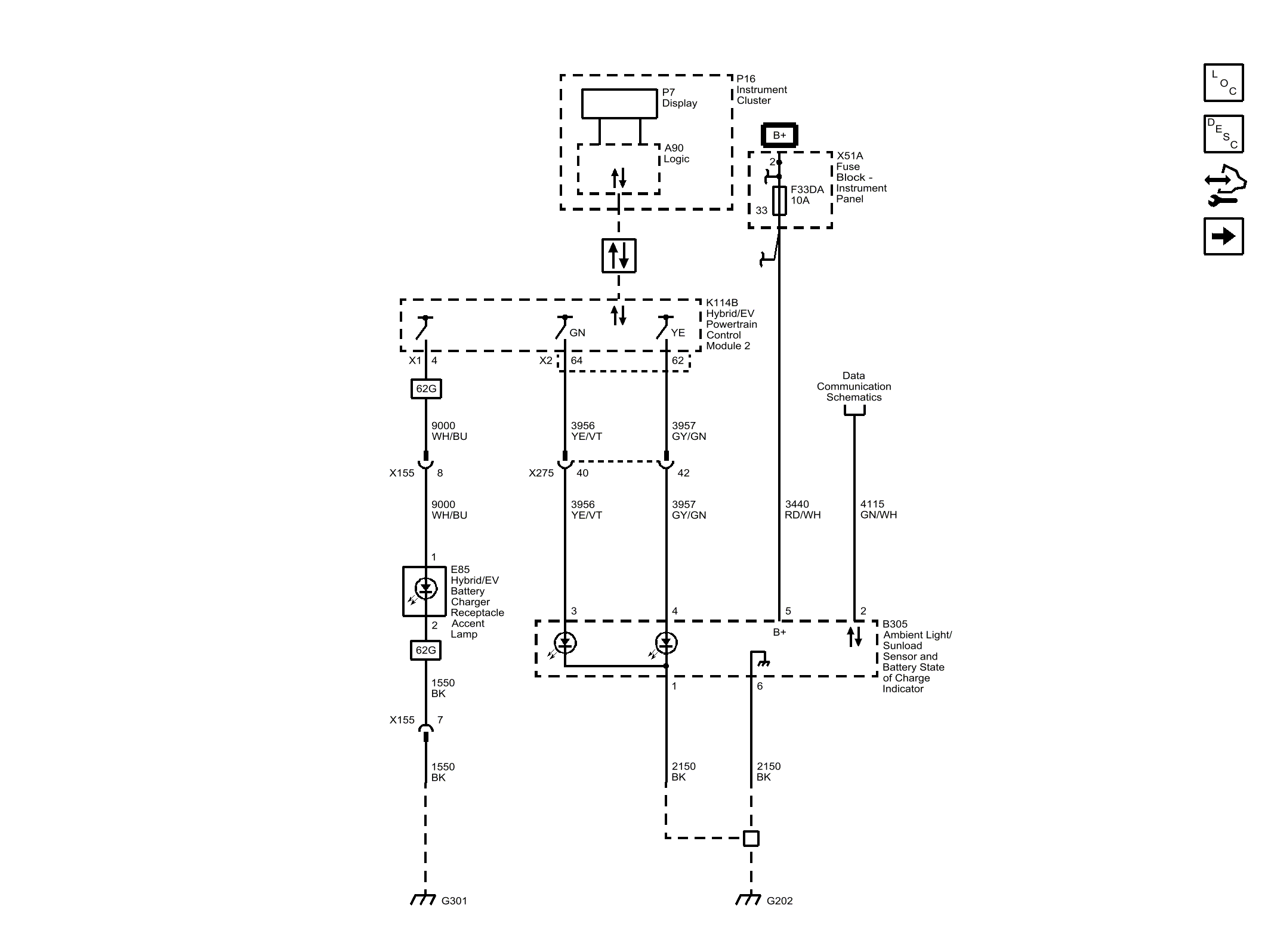

Fig 1: Battery State of Charge

GM4072756

Courtesy of GENERAL MOTORS COMPANY
