High Frequency Antenna Replacement

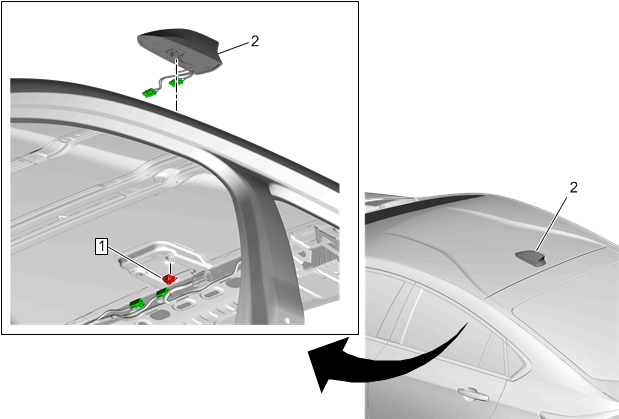

Fig 1: High Frequency Antenna
GM4140695Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Headlining Trim Panel. Refer to Headlining Trim Panel Replacement
1 High Frequency Antenna Nut
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 High Frequency Antenna
Procedure
Disconnect the electrical connectors.
