Audio Disc Player and USB Receptacle Replacement

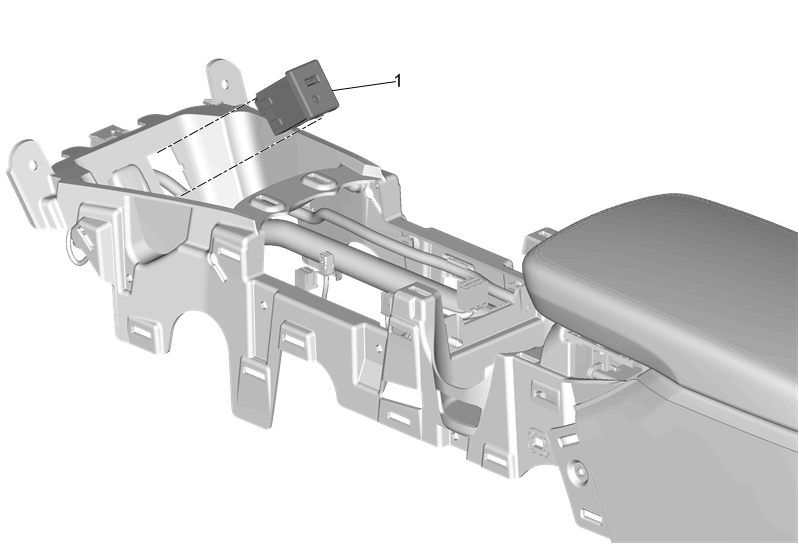

Fig 1: Audio Disc Player And USB Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Refer to Front Floor Console. Refer to Front Floor Console Replacement
1	Audio Disc Player and USB Receptacle Procedure Depress the tabs on the receptacle to remove. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Refer to Front Floor Console. Refer to Front Floor Console Replacement

Audio Disc Player and USB Receptacle

Procedure
