Forward Range Radar Bracket Replacement (Cadillac with AVF)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

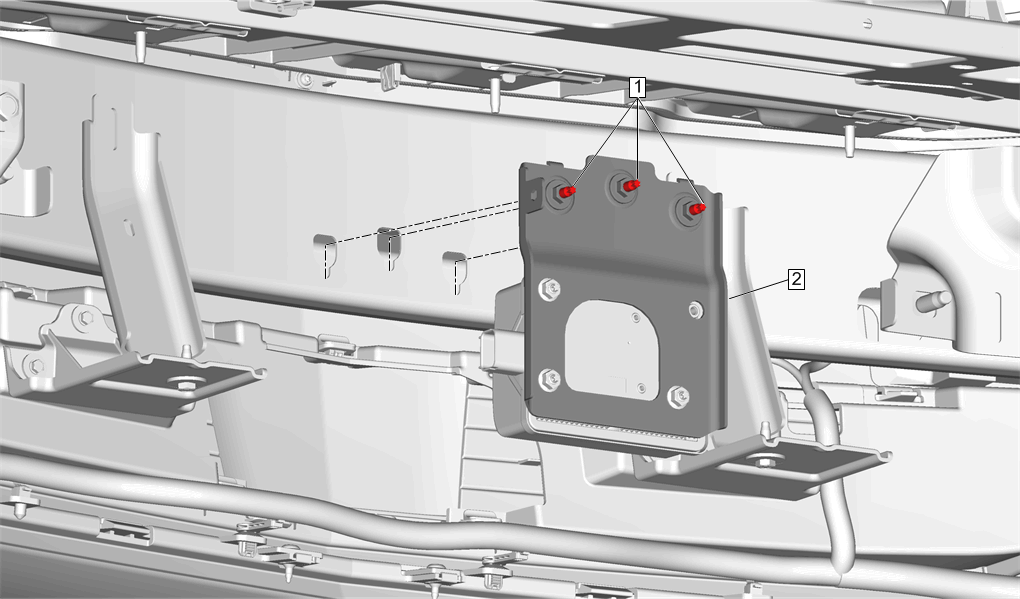

Fig 1: Forward Range Radar Bracket (Cadillac with AVF)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Forward Range Radar Bracket Bolt (Qty: 3) CAUTION: Fastener Caution Procedure Using the appropriate tool on the pilot end of the bolt, loosen the bolts. Tighten 9 N.m (80 lb in)
2	Forward Range Radar Module Bracket Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Forward Range Radar Bracket Bolt (Qty: 3)

CAUTION:

Fastener Caution

Procedure
Using the appropriate tool on the pilot end of the bolt, loosen the bolts.
Tighten
9 N.m (80 lb in)

Forward Range Radar Module Bracket

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
