Video Display Replacement (Second Row)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

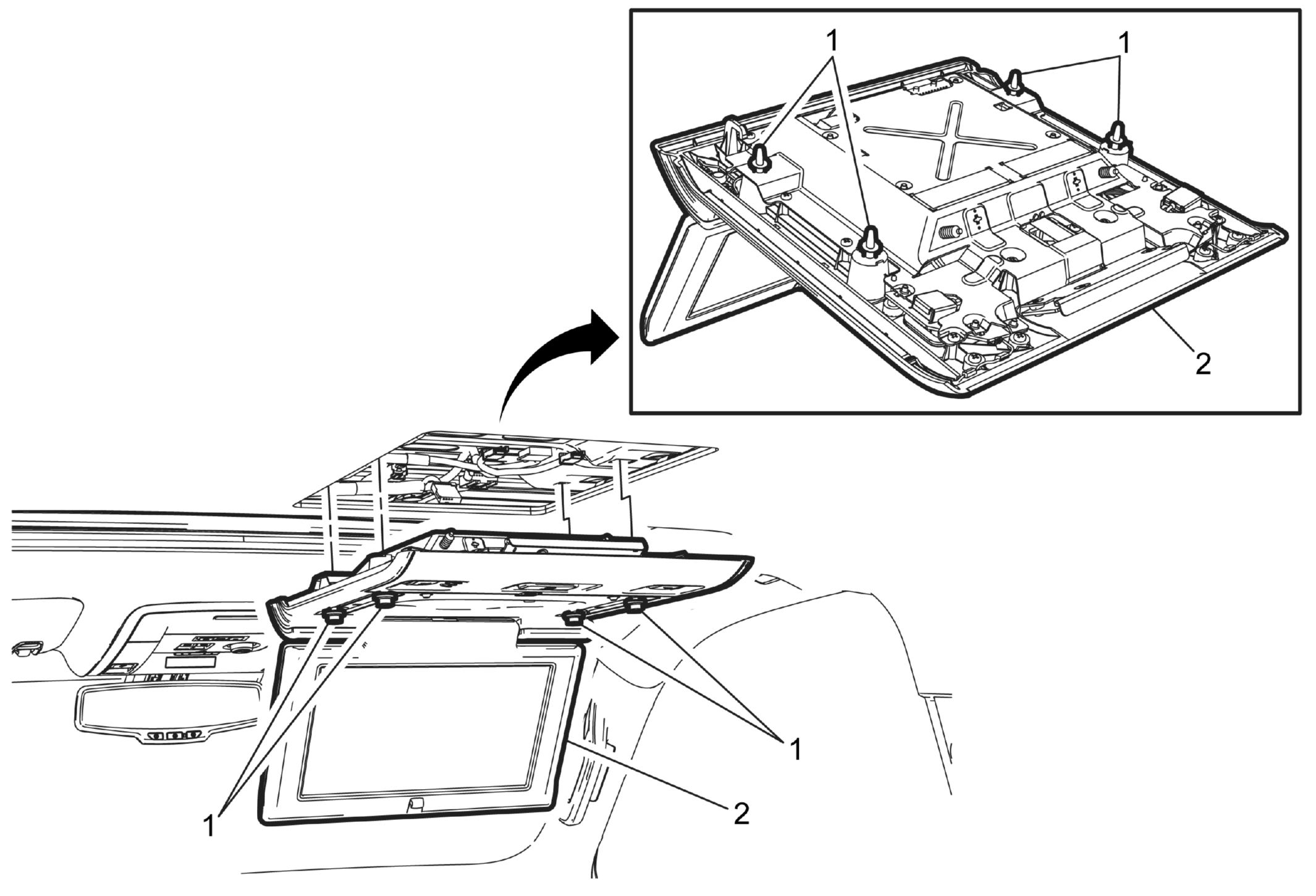

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the video auxiliary display cover. Refer to Video Auxiliary Display Cover Replacement . |
|
| 1 | Video Display Fasteners (Qty: 4)
CAUTION:
Refer to Fastener Caution .
NOTE:
Make sure that all 4 washers on the 4 mounting screws are accounted for. If any washers are off the screw and loose, discard to prevent a rattle. The washers were required only for assembly plant installation, and can be used if still on the screw or they can be discarded. Tighten 2 N.m (18 lb in) |
| 2 | Video Display Assembly Procedure Disconnect the electrical connector. |
