Video Display Bracket Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

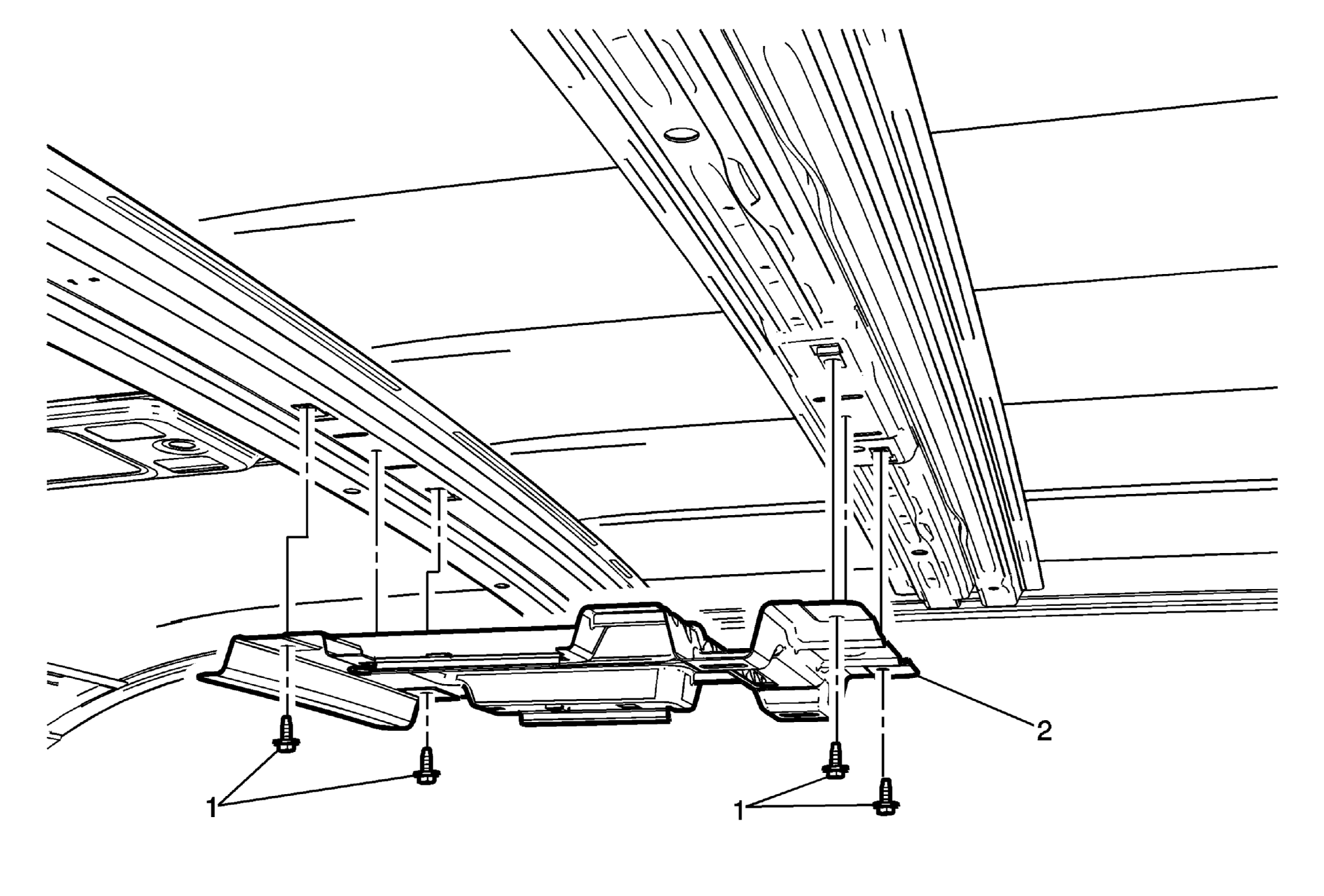

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lower the headlining trim panel only. Perform the steps only necessary to gain access to the part. Refer to Headlining Trim Panel Replacement (Standard Wheelbase)Headlining Trim Panel Replacement (Extended Wheelbase) . |
|
| 1 | Video Display Bracket Fasteners (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 2 | Video Display Bracket Procedure After removal of the fasteners, pull downward to release two integral retainers. |
