Backup Alarm Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

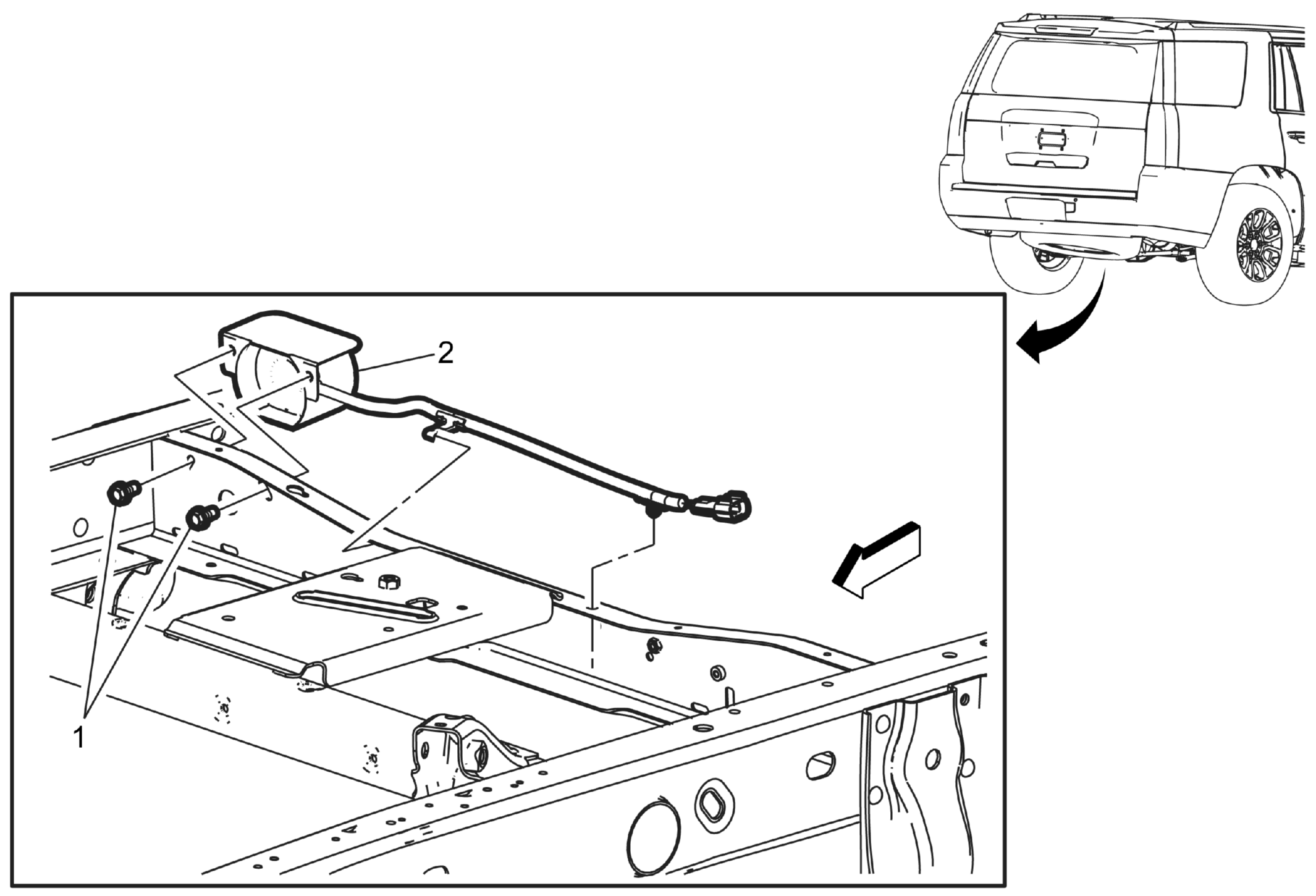

Fig 1: Backup Alarm

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the spare tire enough to gain access to the alarm secured to the frame. Refer to Spare Wheel Hoist Replacement .
1	Backup Alarm Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb in)
2	Backup Alarm Procedure Disconnect the electrical connection. Disconnect integral alarm lead from frame in two places.

Callout

Component Name

Preliminary Procedure
Lower the spare tire enough to gain access to the alarm secured to the frame. Refer to Spare Wheel Hoist Replacement .

Backup Alarm Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
12 N.m (106 lb in)

Backup Alarm

Procedure

Disconnect the electrical connection.
Disconnect integral alarm lead from frame in two places.
