Rear Closure Hands Free Module Replacement (Cadillac)

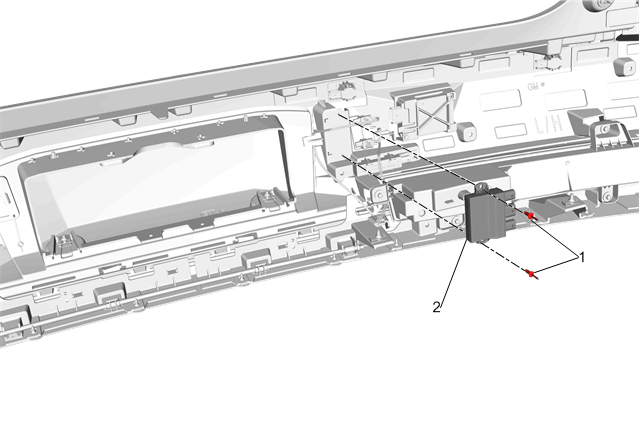

Fig 1: Rear Closure Hands Free Module (Cadillac)
GM3946340Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Eye Protection Warning .

Preliminary Procedure

  1. Remove the rear fascia. Refer to Rear Bumper Fascia Replacement (Cadillac)
  2. Place the bumper fascia face down on a clean protected surface.
1 Rear Closure Hands Free Module Rivet (Qty: 2)
2 Rear Closure Hands Free Module
Procedure
Disconnect the electrical connectors.
