Front Compartment Splash Shield Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

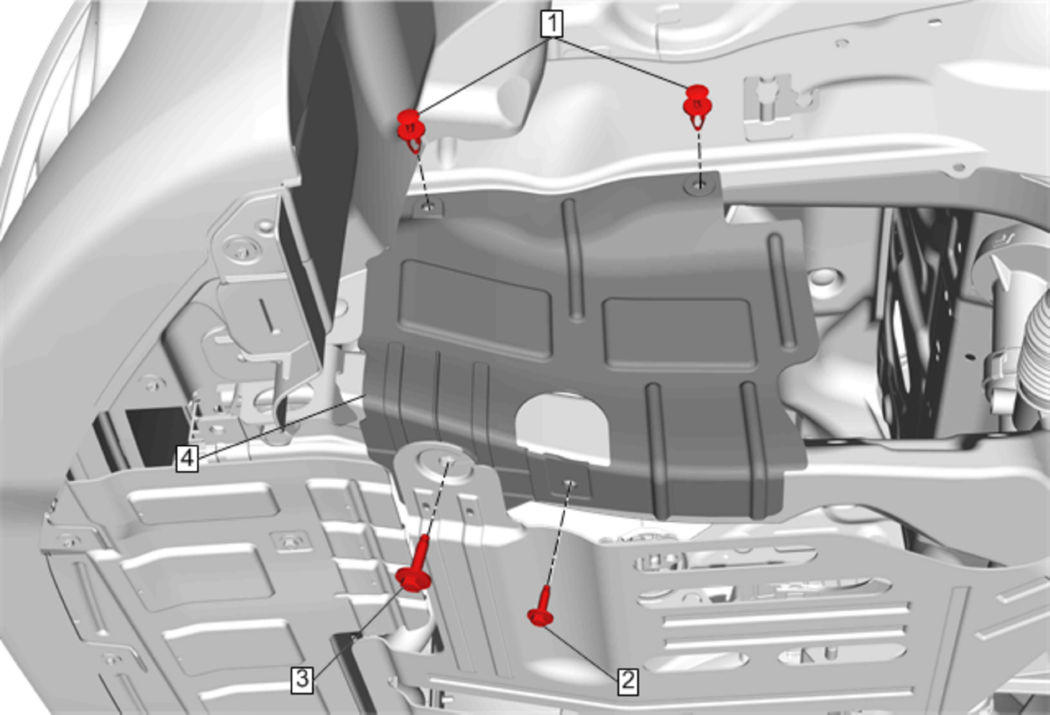

| Callout | Component Name |
|---|---|
| 1 | Front Compartment Splash Shield Retainer (Qty 2) |
| 2 | Front Compartment Splash Shield Bolt
CAUTION:
Refer to Fastener Caution
. Tighten 9 N.m (80 lb in) |
| 3 | Drivetrain and Front Suspension Frame Skid Plate Bolt (Qty 1) {If equipped} Tighten 22 N.m (16 lb ft) |
| 4 | Front Compartment Splash Shield |
