Front Seat Belt Buckle Replacement

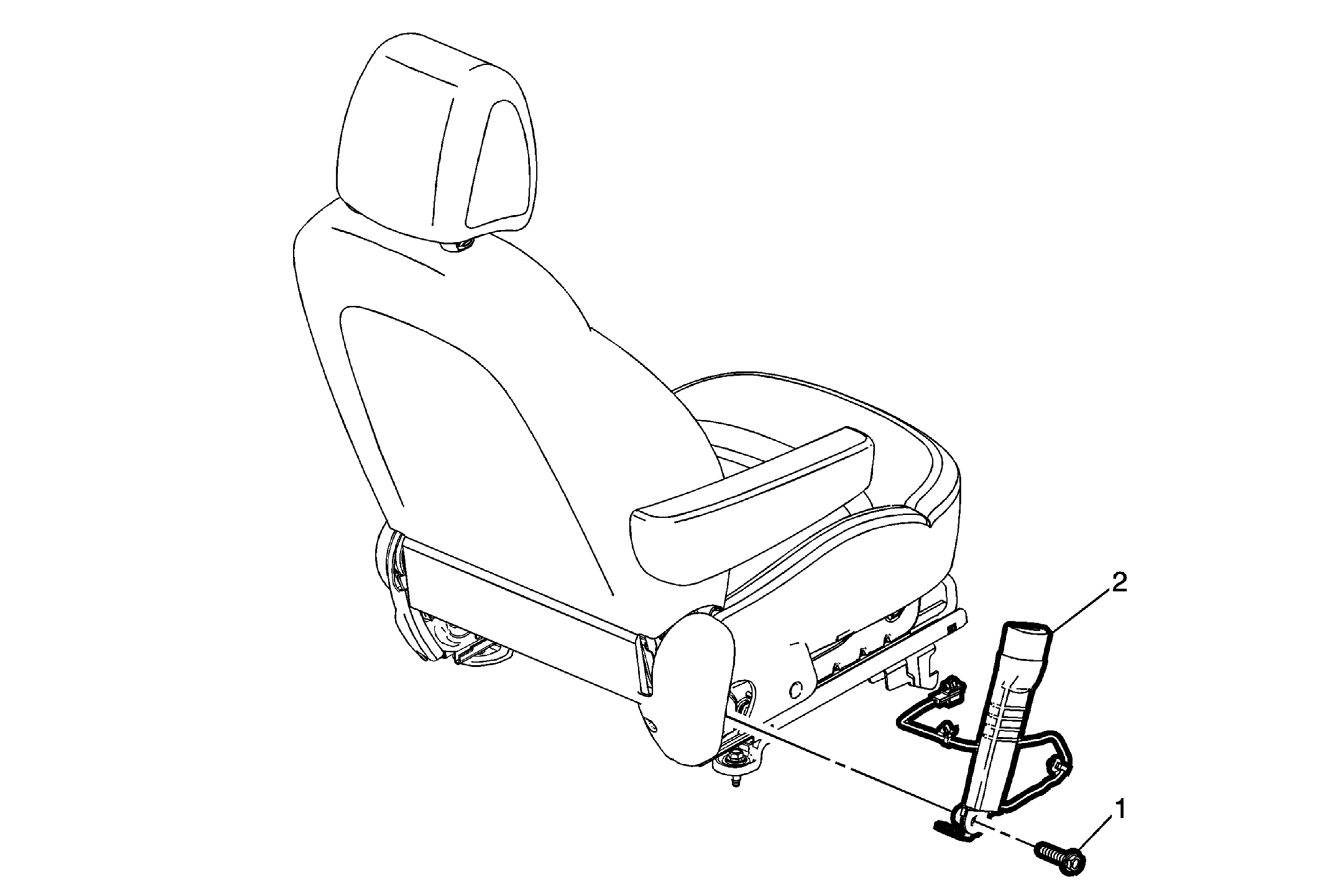

Fig 1: Front Seat Belt Buckle
GM2969400Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
1 Front Seat Belt Buckle Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
40 N.m (30 lb ft)
2 Front Seat Belt Buckle Assembly
