Drive Mode Select Switch and Multifunction Switch

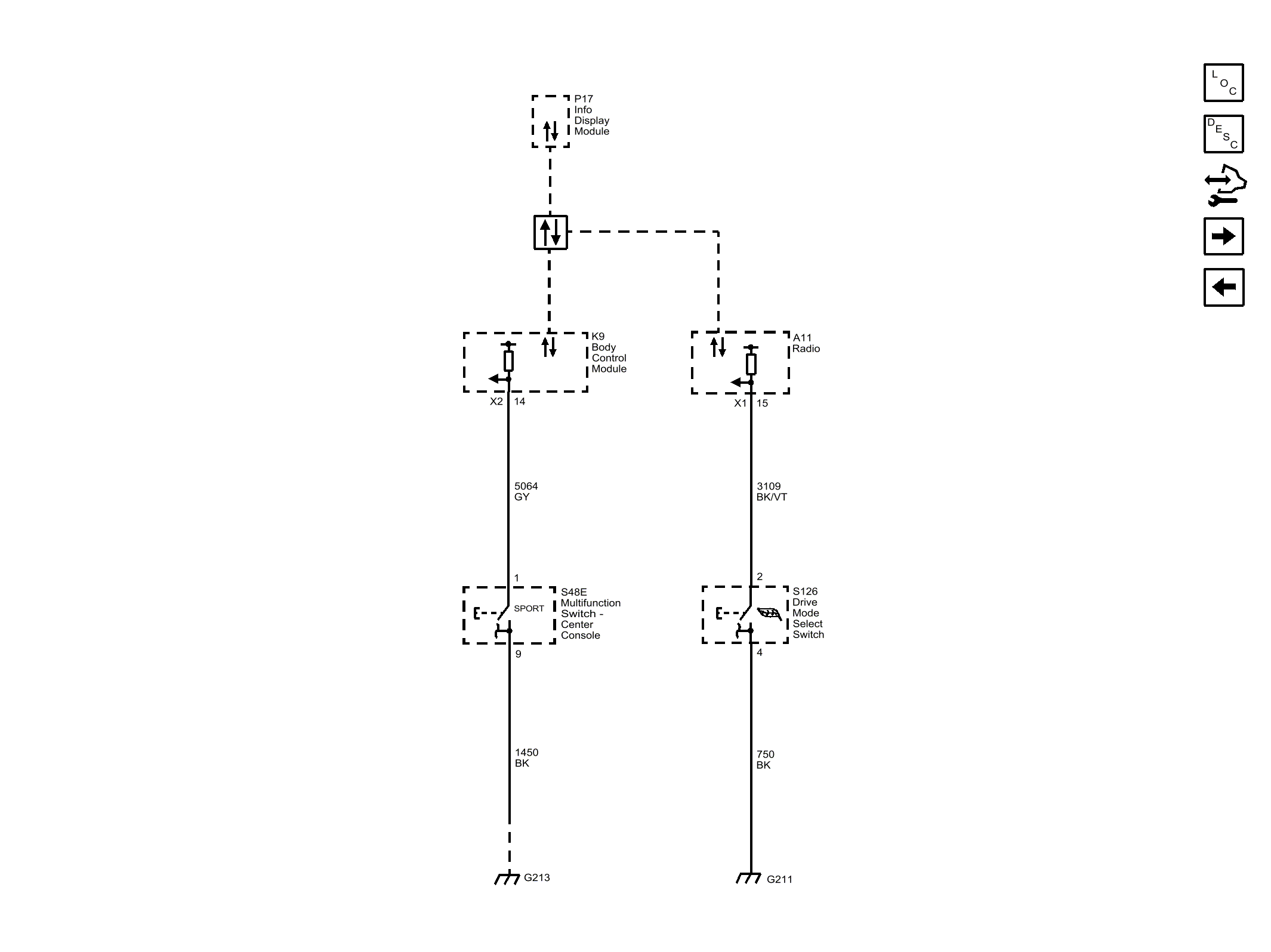

Fig 1: Drive Mode Select Switch and Multifunction Switch

GM4067383

Courtesy of GENERAL MOTORS COMPANY
