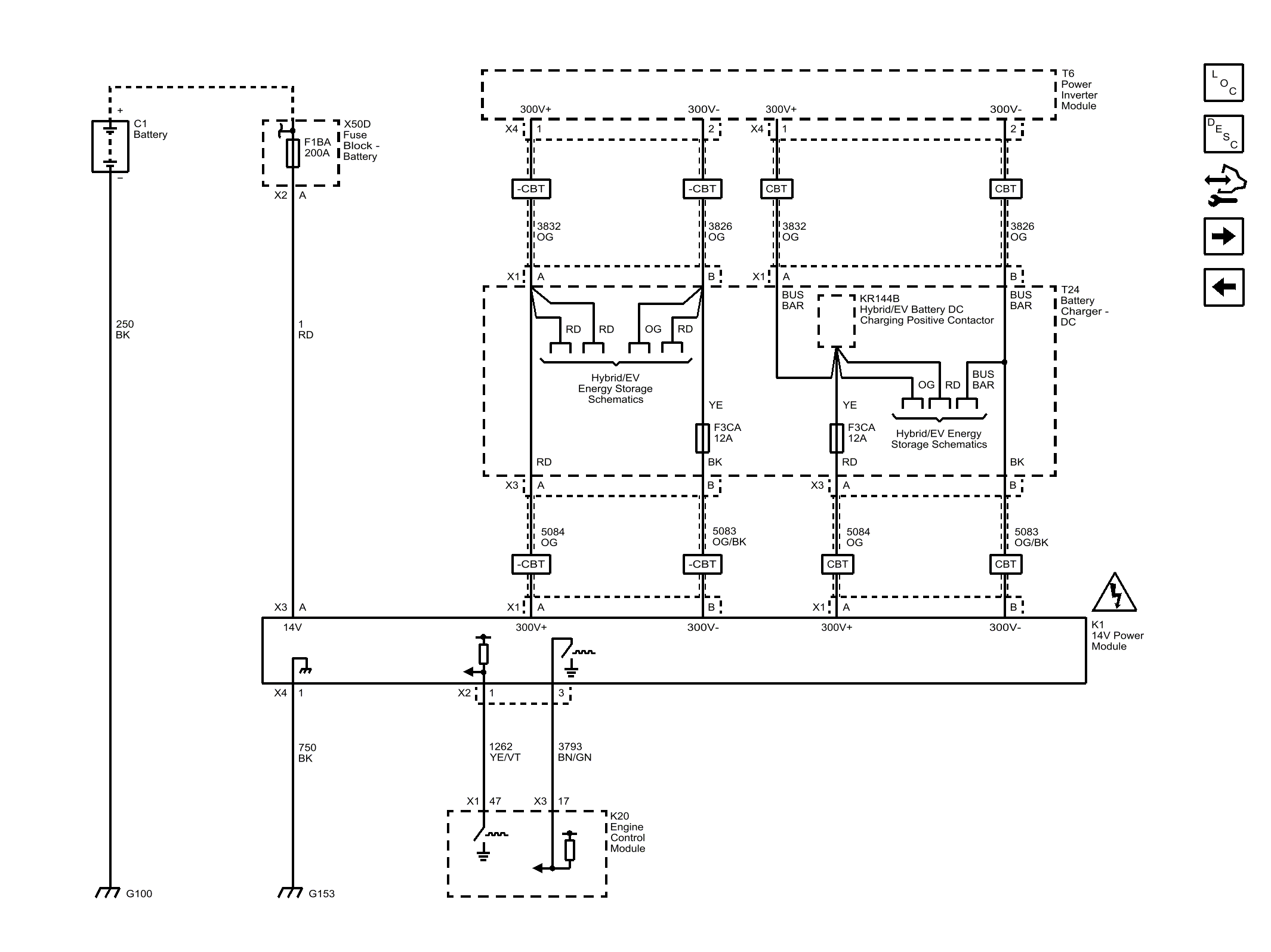

Home >> Chevrolet >> 2016 >> Spark EV >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Electric Converters and Controllers >> Hybrid/EV Control System >> Schematic Wiring Diagrams >> Hybrid/EV Controls Wiring Schematics >> 14V Power Module
