Front Side Door Lock Striker Replacement

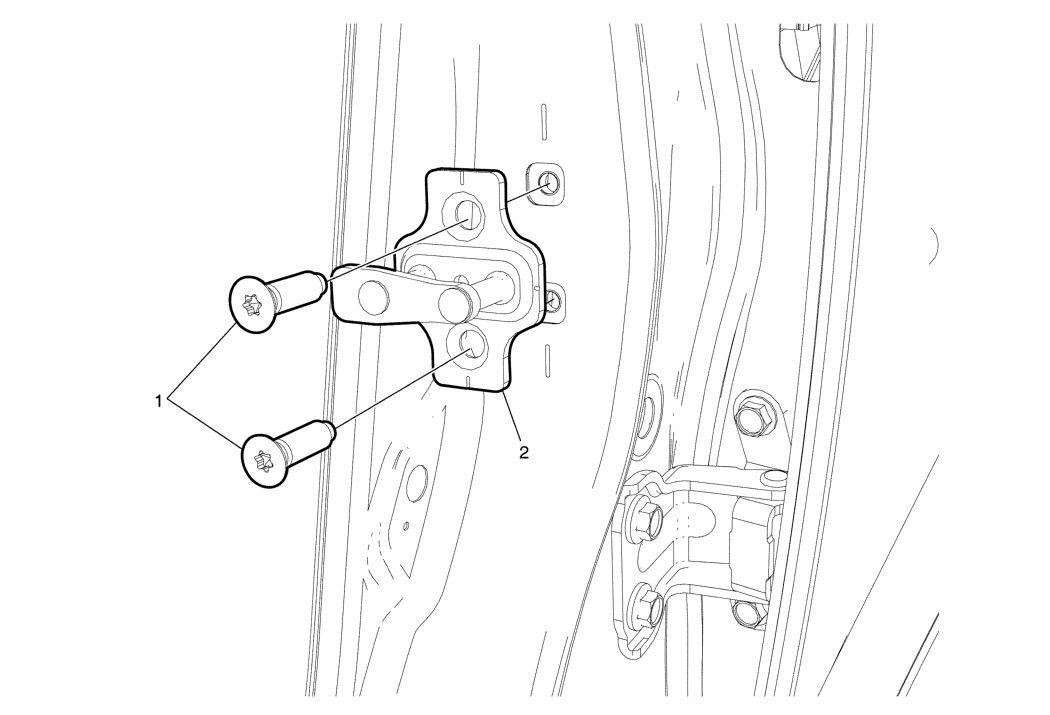

Fig 1: Front Side Door Lock Striker
GM2309093Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Lock Striker Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
30 N.m (22 lb ft)
2 Front Side Door Lock Striker
NOTE:

When the striker bolts have been removed, the striker anchor plate could slip down in the door pillar or quarter panel and the trim will need to be removed to gain access.
