Radio Antenna Base Replacement

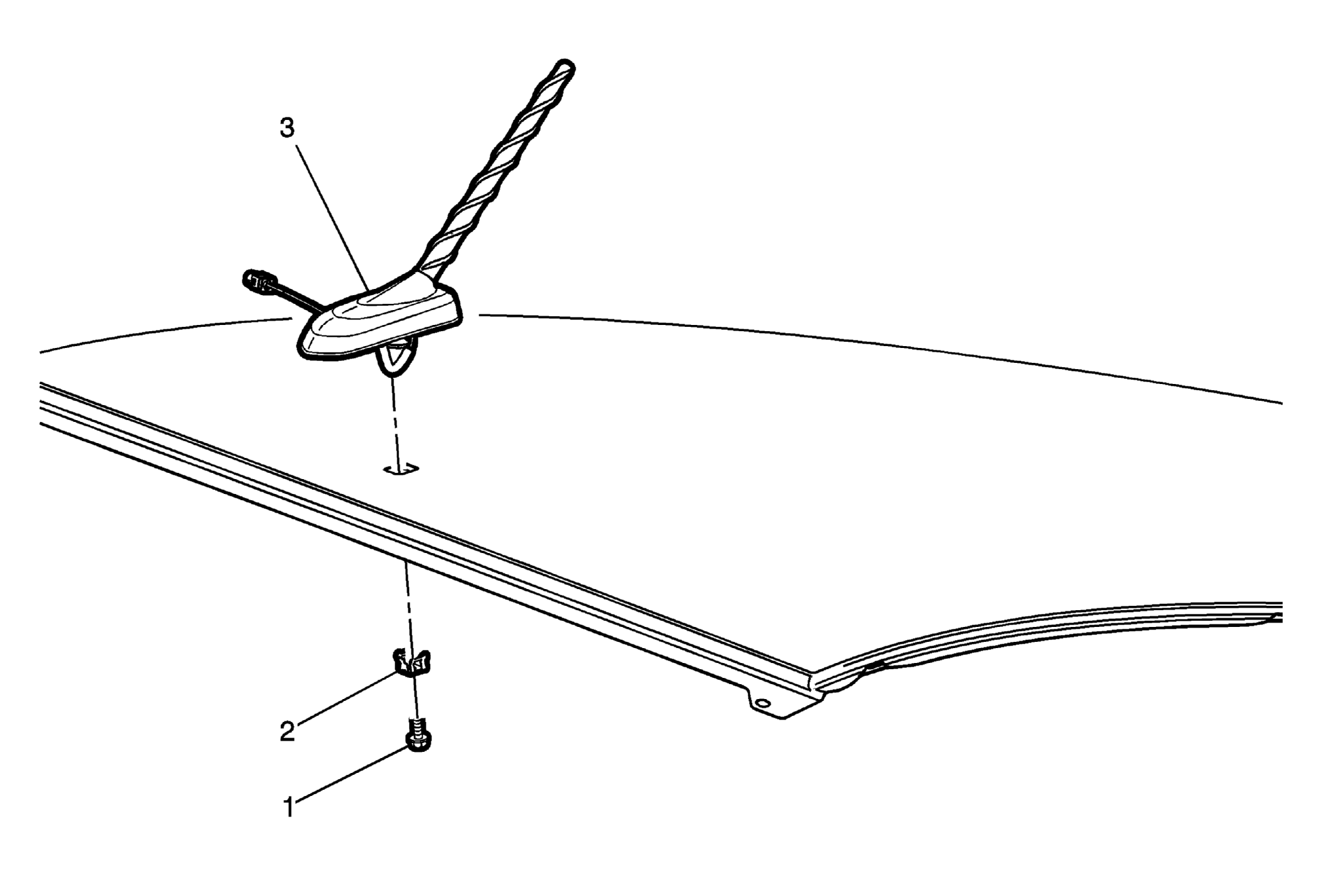

Fig 1: Radio Antenna Base

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the center courtesy lamp. Refer to Center Courtesy Lamp Replacement (Europe, Korea)Center Courtesy Lamp Replacement (North America) .
1	Radio Antenna Base Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Radio Antenna Base Retainer
3	Radio Antenna Base Procedure Disconnect electrical connector. Remove the antenna base from the roof panel.
