Module Power, Ground, Serial Data, and MIL

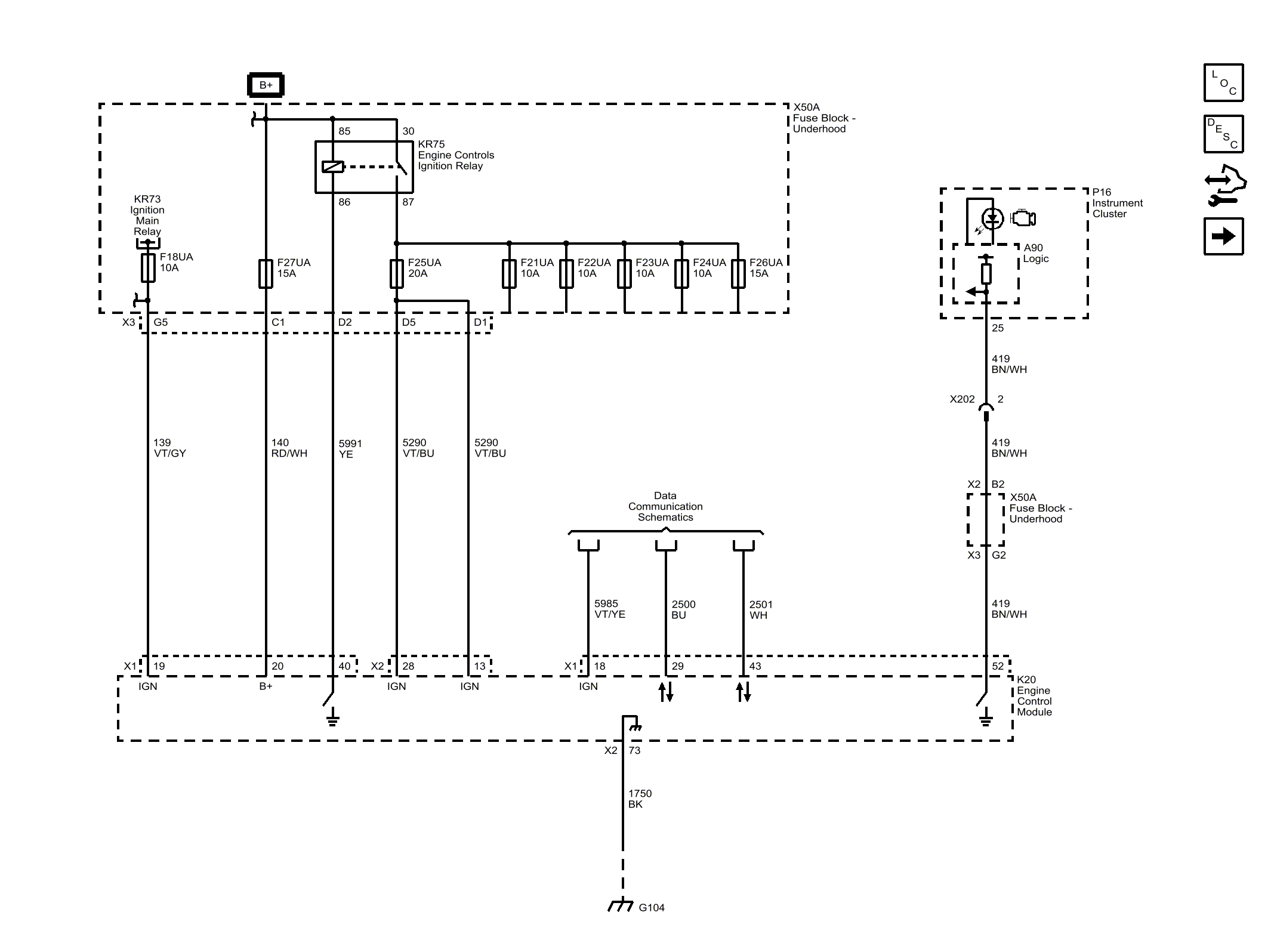

Fig 1: Module Power, Ground, Serial Data, and MIL

GM3982062

Courtesy of GENERAL MOTORS COMPANY
