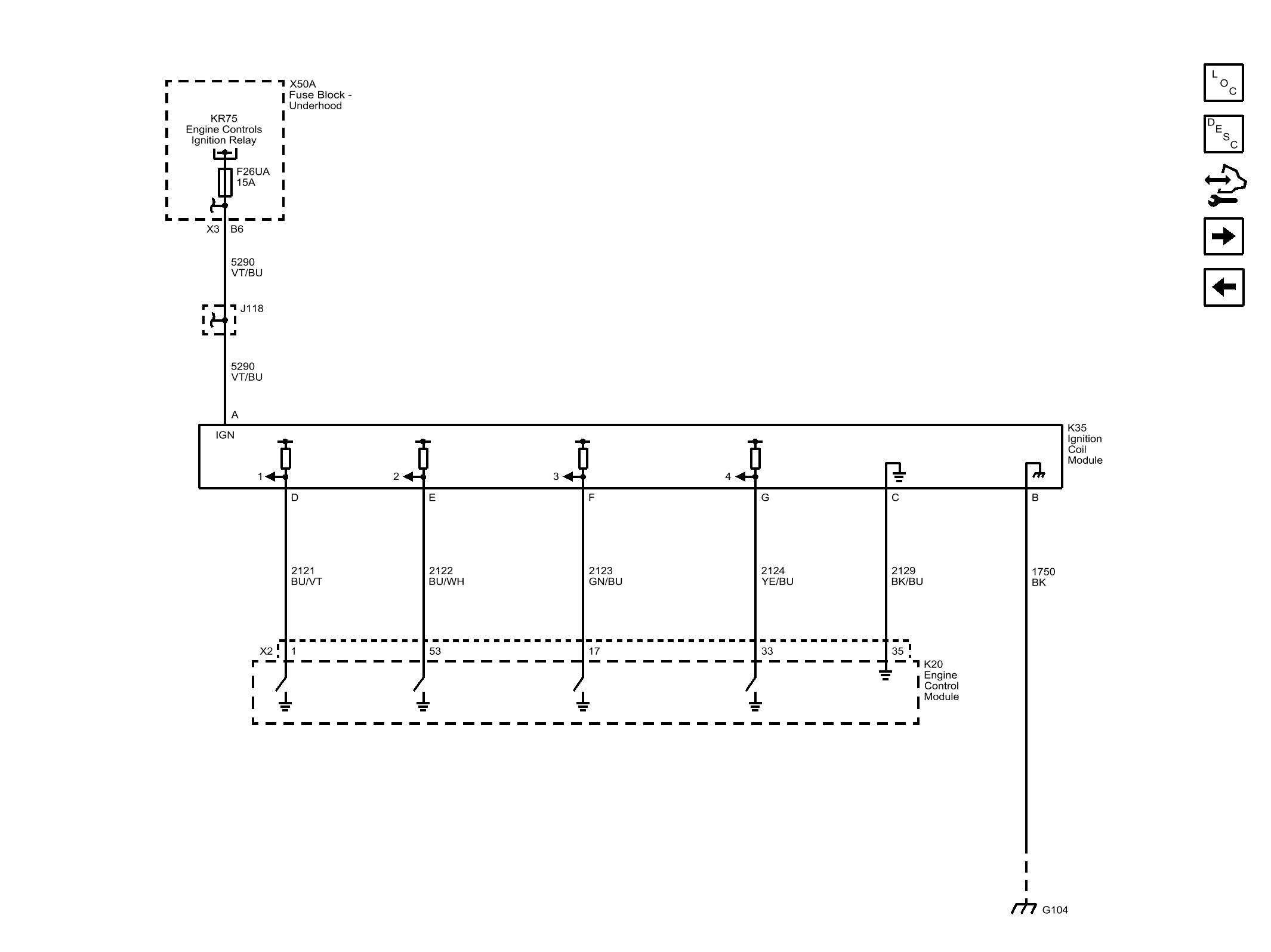

Home >> Chevrolet >> 2016 >> Sonic RS, 4D Hatchback, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls/Fuel - 1.4L (LUV) - Schematic Wiring Diagrams - Engine Controls Schematics >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Ignition Controls - Ignition System
