Top of the Engine Components (LML)

Top of the Engine Components (LML)

Items
1. Q18B Fuel Pressure Regulator 2 (LML) Q18B Fuel Pressure Regulator 1 (LML)
2. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LML)
3. Q18A Fuel Pressure Regulator 1 (LML) Q18A Fuel Pressure Regulator 1 (LML)
4. B48 Fuel Temperature Sensor (LML) B48 Fuel Temperature Sensor

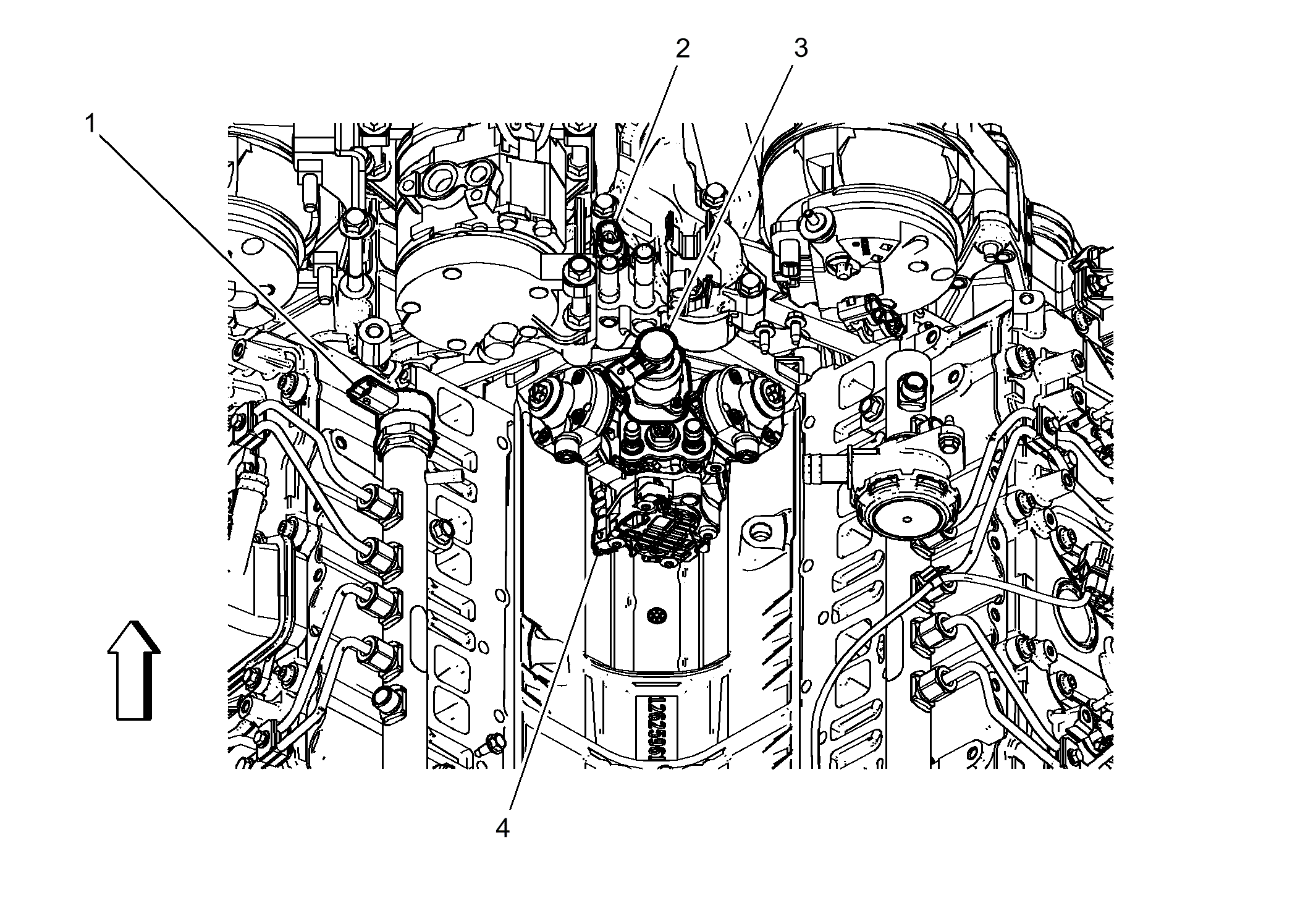

Fig 1: Top of the Engine Components (LML)
GM4103828Courtesy of GENERAL MOTORS COMPANY
