Left Side of Engine Compartment Components (LML)

Left Side of Engine Compartment Components (LML)

Items
1. K71 Transmission Control Module K71 Transmission Control ModuleK71 Transmission Control Module (MW7)
2. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X5
3. P12 Horn
4. K20 Engine Control Module K20 Engine Control Module X1 (LML)K20 Engine Control Module X2 (LML)K20 Engine Control Module X3 (LML)

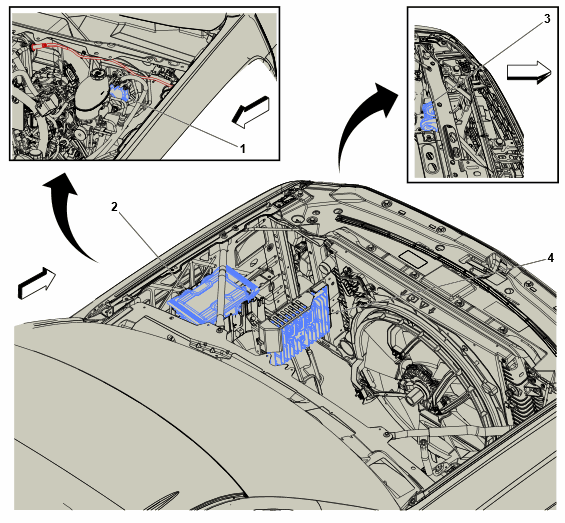

Fig 1: Left Side of Engine Compartment Components (LML)
GM4092896Courtesy of GENERAL MOTORS COMPANY
