Antilock Brake System Wiring Schematics
>>
Stability Controls
Stability Controls

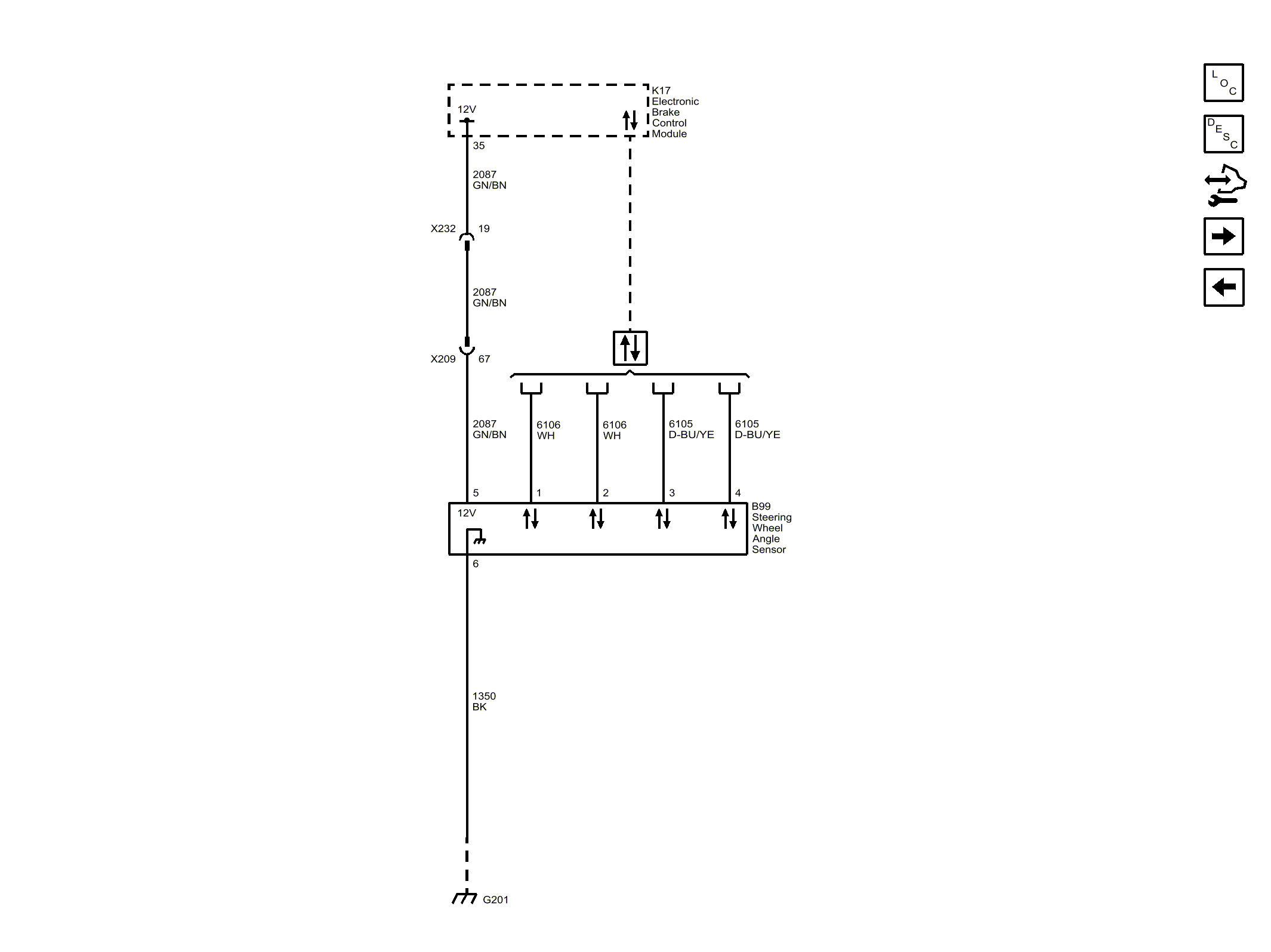

Fig 1: Stability Controls
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
