Heated Oxygen Sensor Replacement - Sensor 1

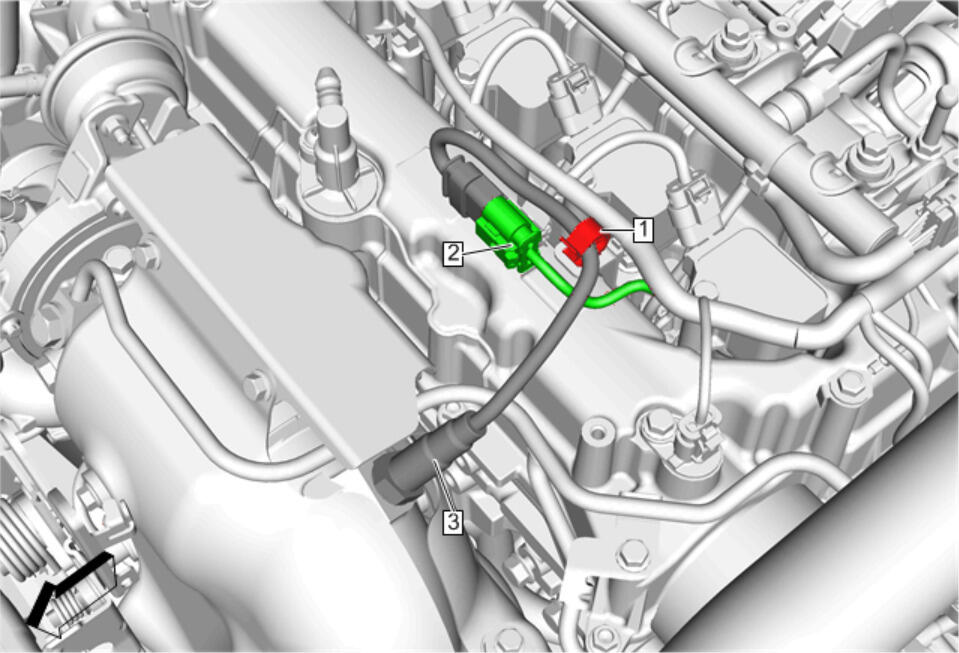

Fig 1: Heated Oxygen Sensor - Sensor 1

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . Preliminary Procedures Battery Negative Cable Disconnection and Connection (with KL9)Battery Negative Cable Disconnection and Connection (without KL9) Intake Manifold Cover Replacement
1	Wiring Harness Clip
2	Wiring Harness
3	Heated Oxygen Sensor CAUTION: Refer to Component Fastener Tightening Caution . CAUTION: Refer to Heated Oxygen and Oxygen Sensor Caution . CAUTION: Refer to Heated Oxygen Sensor Resistance Learn Reset Caution . CAUTION: Refer to Silicon Contamination of Heated Oxygen Sensors Caution . CAUTION: A special anti-seize compound is used on the oxygen sensor threads. New service sensors should already have the compound applied to the threads. Coat the threads of a reused sensor with anti-seize compound P/N 5613695 or equivalent. Procedure When the replacement is completed, use a scan tool to perform the appropriate reset functions. K20 Engine Control Module: Programming and Setup Tighten 42 N.m (31 lb ft) Special Tools EN-48259 Installer / Remover Equivalent regional tools: Special Tools (Diagnostic Tools)Special Tools (Mechanical Tools)
