Park Assist - Power, Ground, Serial Data and Control

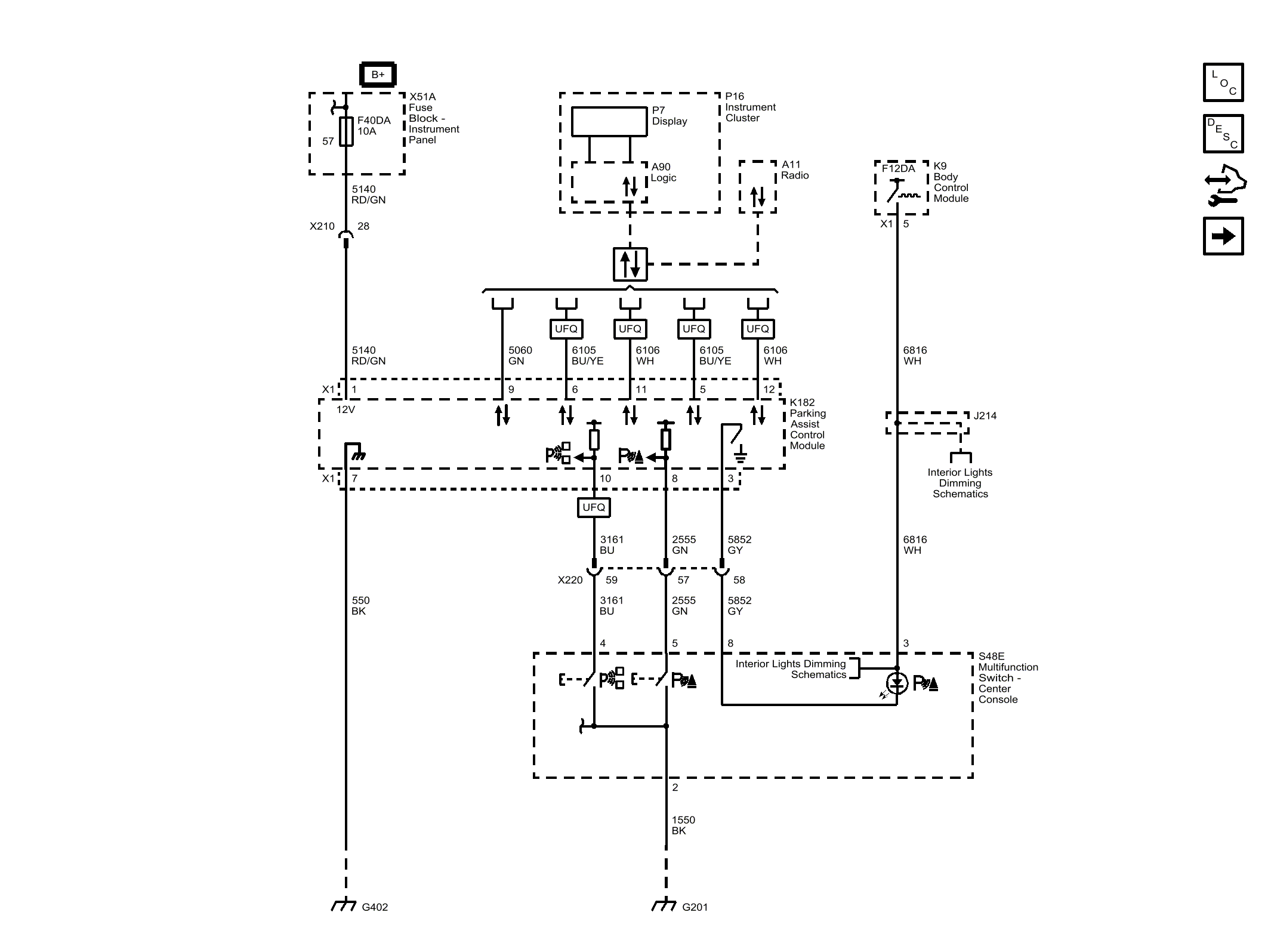

Fig 1: Park Assist - Power, Ground, Serial Data and Control

GM4246603

Courtesy of GENERAL MOTORS COMPANY
