Collision Avodance - Serial Data Camera, Module and Long Range Radar (UGN)

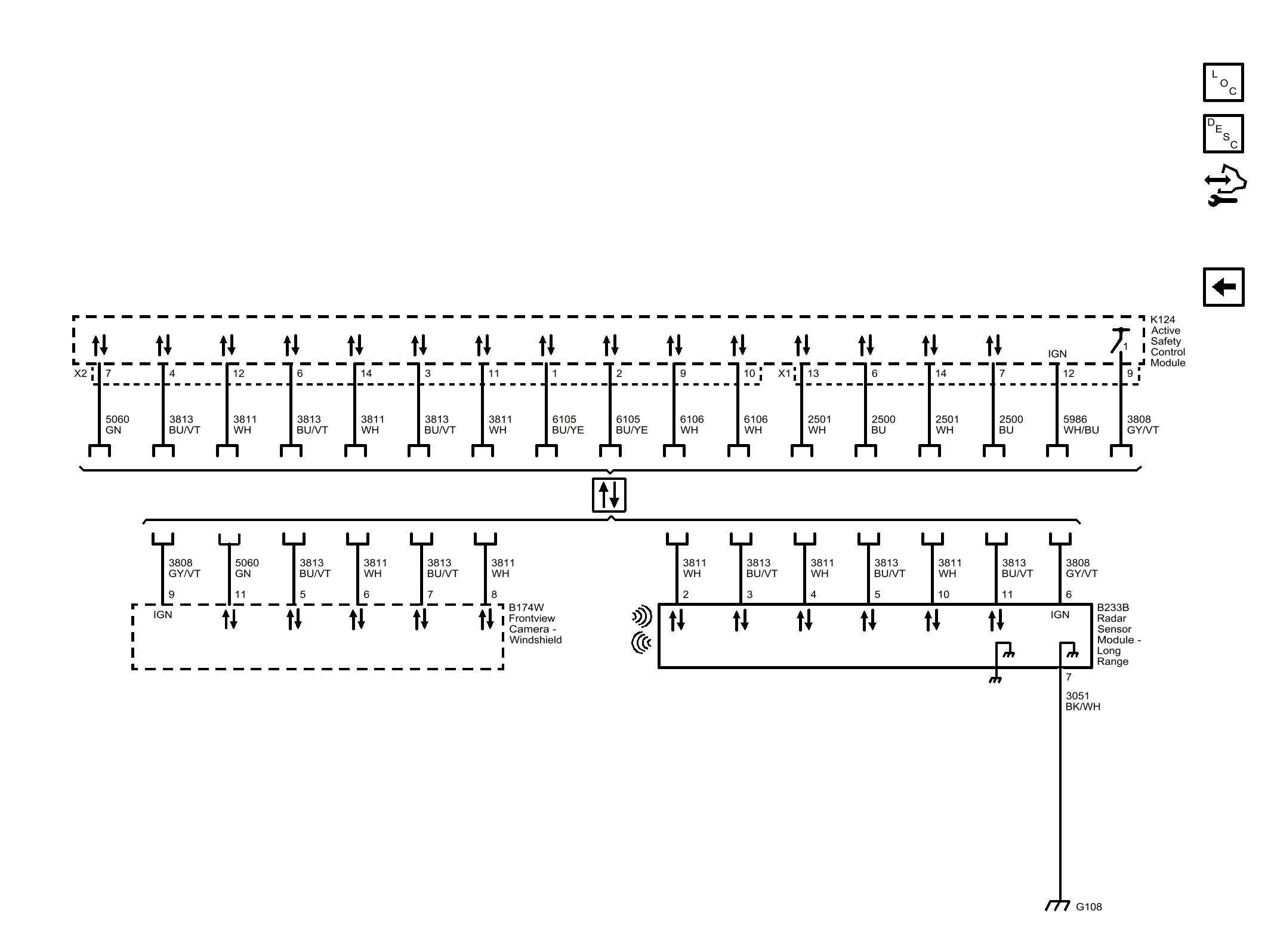

Fig 1: Collision Avodance - Serial Data Camera, Module and Long Range Radar (UGN)

GM4246610

Courtesy of GENERAL MOTORS COMPANY
