Installation Procedure

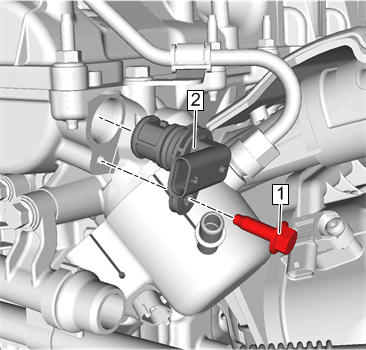

    Fig 1: Camshaft Position Sensor Bolt
    GM4321627Courtesy of GENERAL MOTORS COMPANY
  1. Install Camshaft Position Sensor (2)
    2. WARNING:

    Refer to Fastener Caution .

  2. Install Camshaft Position Sensor Bolt (1) and tighten to 10 N.m (89 lb in)

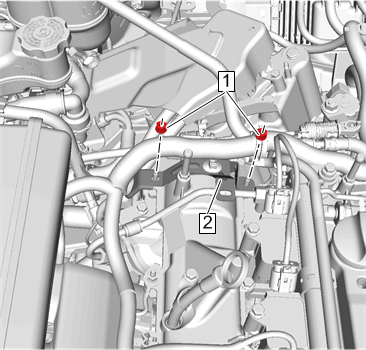

    3. Fig 2: Engine Wiring Harness Bracket Nut
    GM4321412Courtesy of GENERAL MOTORS COMPANY
  3. Install Engine Wiring Harness Bracket (2)
  4. Install Engine Wiring Harness Bracket Nut (2) (Qty: 2) and tighten to 9 N.m (80 lb in)

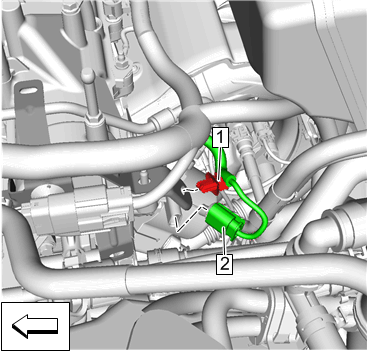

    5. Fig 3: Retainer
    GM4321620Courtesy of GENERAL MOTORS COMPANY
  5. Connect Camshaft Position Sensor Electrical Connector (2)
  6. Install Retainer (1)
  7. Install Intake Manifold Cover - Intake Manifold Cover Replacement
