Air Cleaner Assembly Replacement

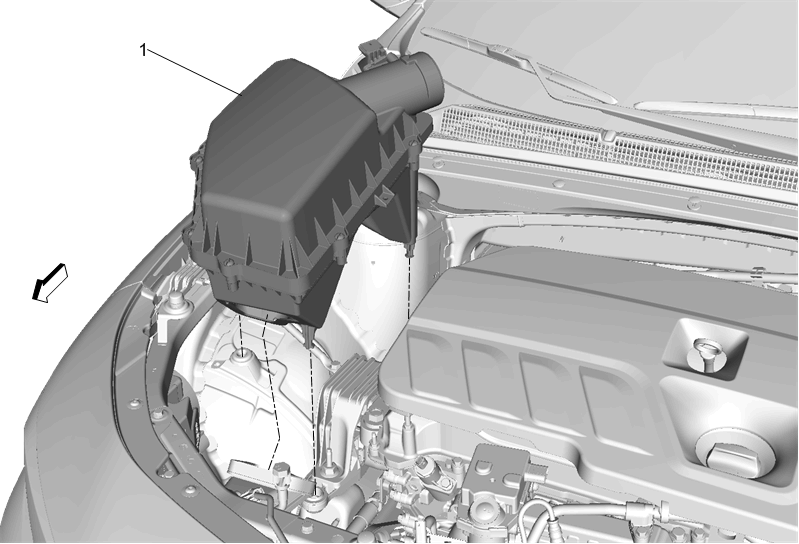

Fig 1: Air Cleaner Assembly
GM4328806Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Disconnect Air Cleaner Outlet Duct - Air Cleaner Outlet Duct Replacement
  2. Disconnect the electrical connector.
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Unclip the mass air flow sensor harness from the air cleaner assembly.
  3. Transfer parts as necessary.
