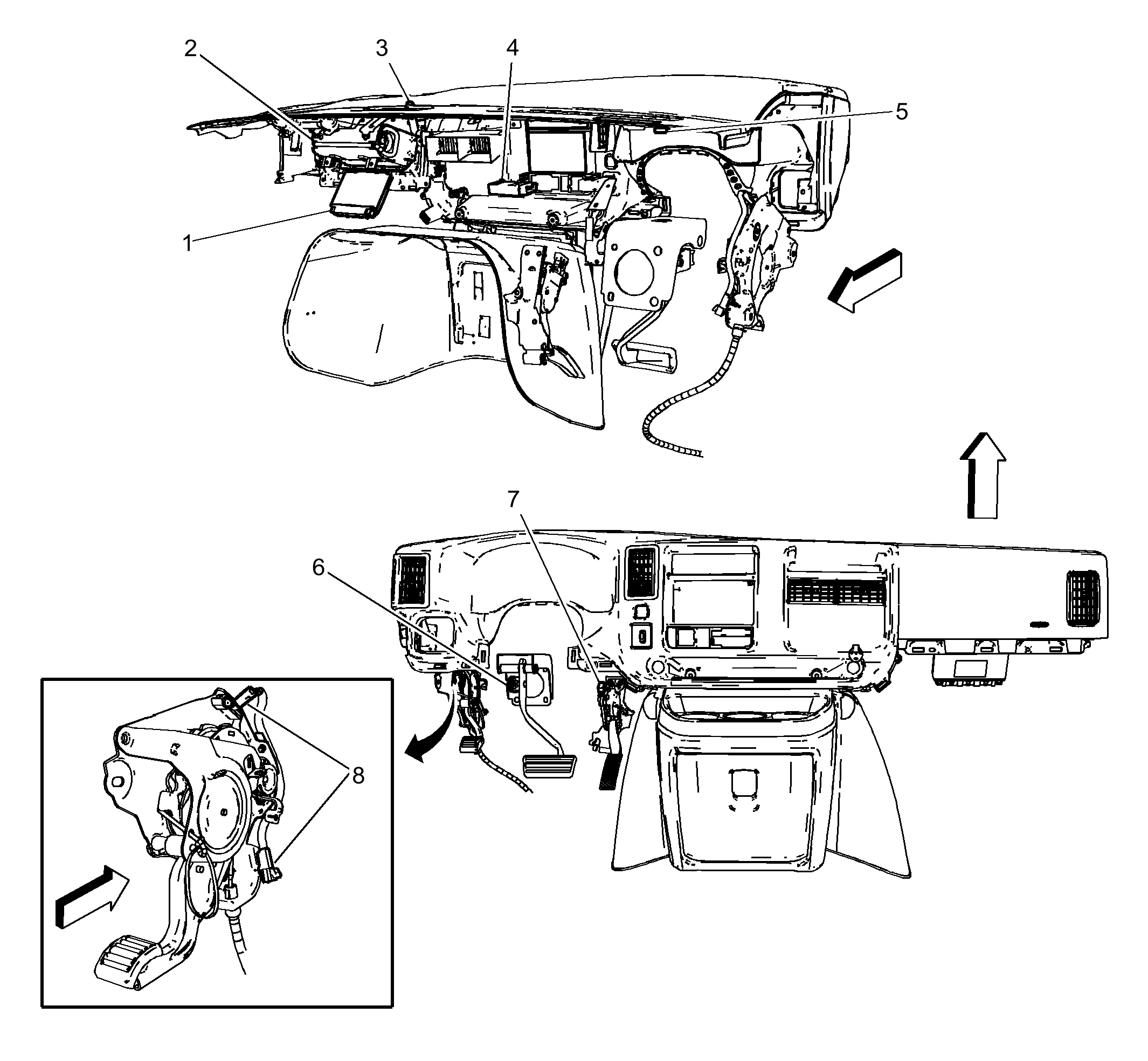

Instrument Panel Components (2 of 2)
Instrument Panel Components (2 of 2)
| Items |
|---|
| 1. K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
| 2. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag |
| 3. B10 Ambient Light Sensor B10 Ambient Light Sensor |
| 4. P5 Chime Alarm Control Module (UL5) P5 Chime Alarm Control Module |
| 5. K77 Remote Control Door Lock Receiver (ATG or UJM) K77 Remote Control Door Lock Receiver |
| 6. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor |
| 7. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor |
| 8. B80 Park Brake Switch Park Brake Switch |
