Exhaust Components (LGH)

Exhaust Components (LGH)

Items
1: Q61 Reductant Injector (LGH) Q61 Reductant Injector
2: B131D Exhaust Temperature Sensor 4 (LGH) B131D Exhaust Temperature Sensor 4
3: B259 Exhaust Pressure Sensor (LGH) B259 Exhaust Pressure Sensor
4: B131C Exhaust Temperature Sensor 3 (LGH) B131C Exhaust Temperature Sensor 3
5: B195B Nitrogen Oxides Sensor 2 (LGH) B195B Nitrogen Oxides Sensor 2

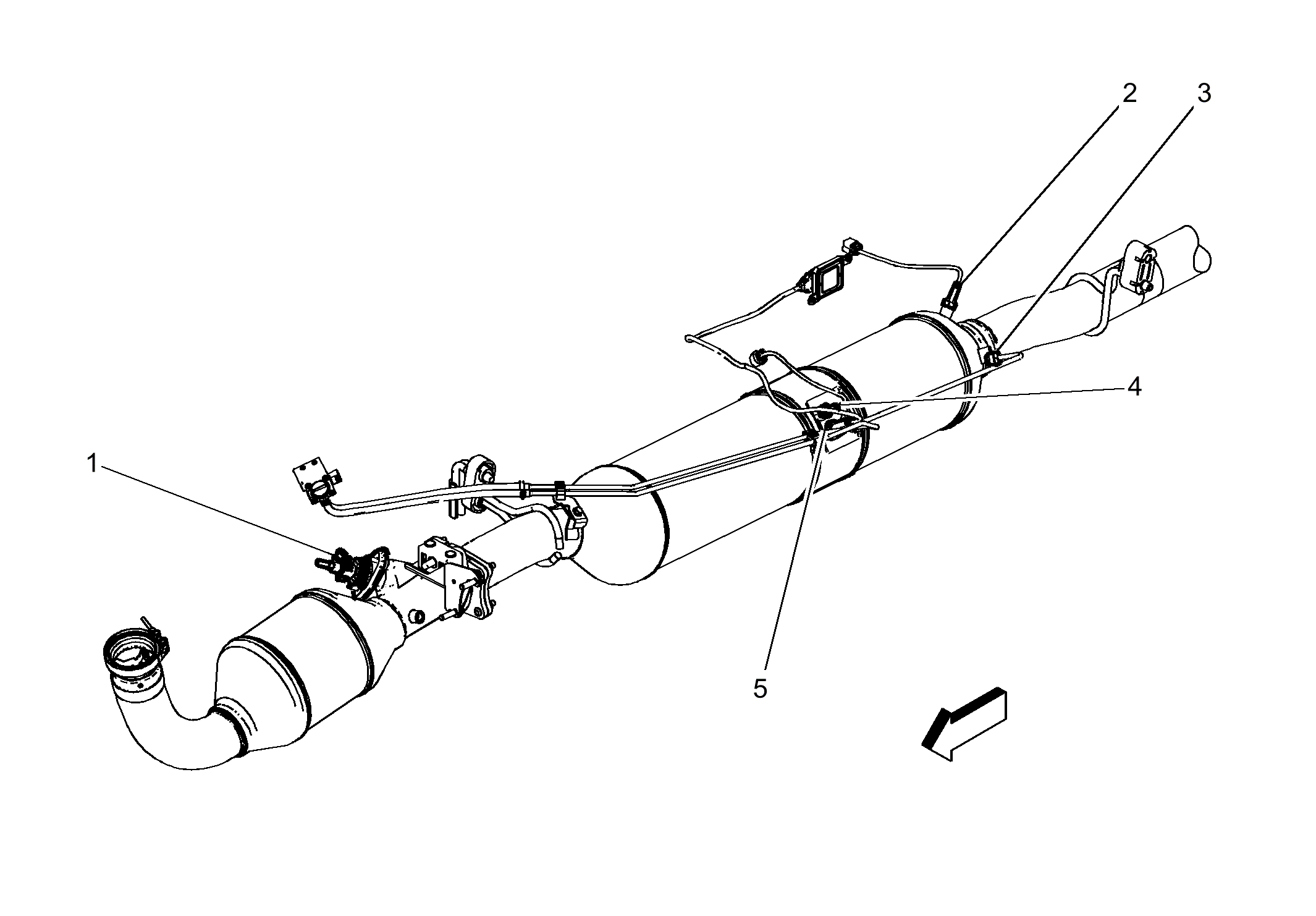

Fig 1: Exhaust Components (LGH)
GM2831311Courtesy of GENERAL MOTORS COMPANY
