Keyless Entry

WARNING: This page is about a different car, the 2015 GMC Savana 3500, 2015 GMC Savana 2500, 2015 Chevrolet Express 3500, and 2015 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

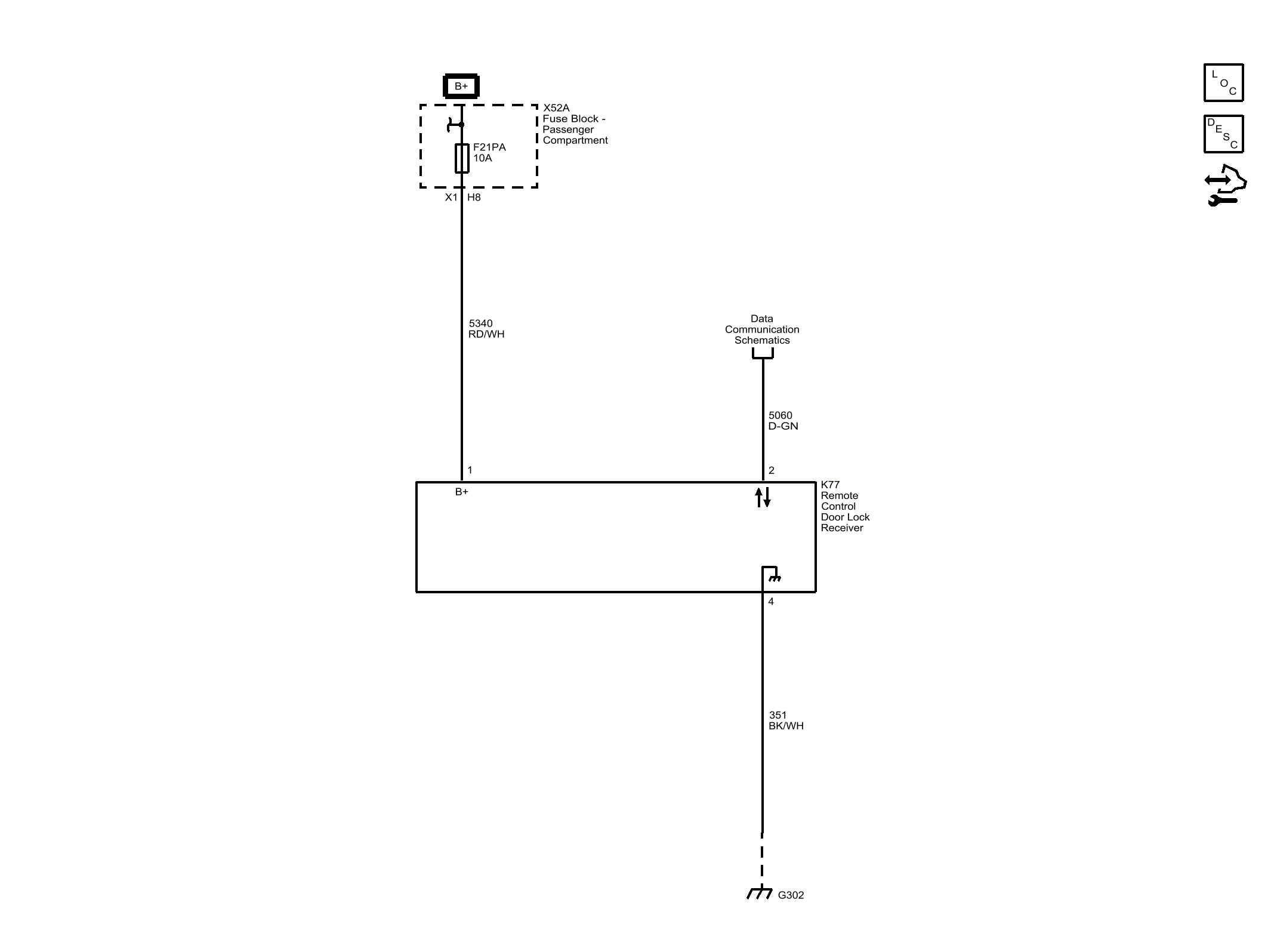

Fig 1: Keyless Entry
GM3805417Courtesy of GENERAL MOTORS COMPANY
