Radio Rear Inner Speaker Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

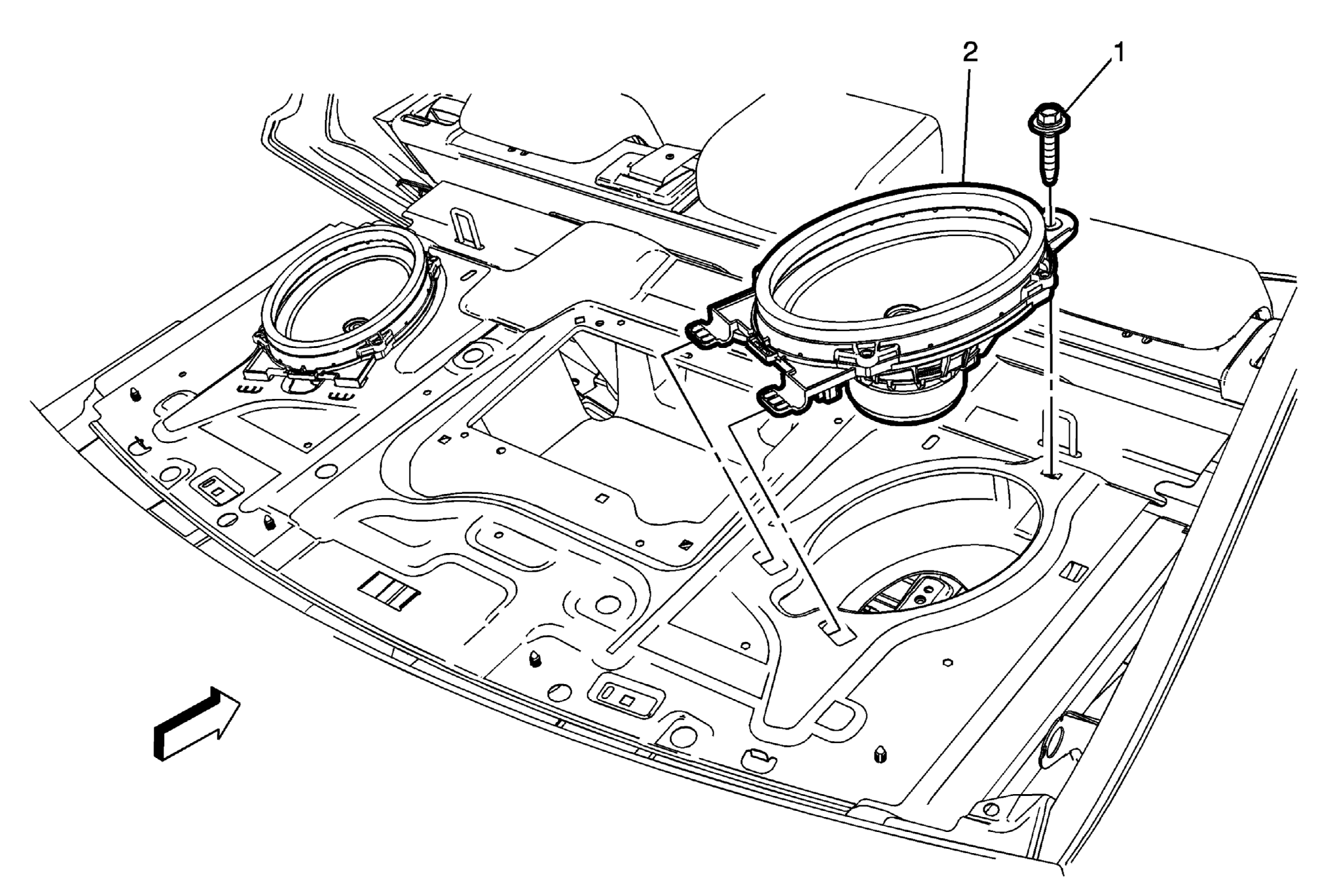

Fig 1: Radio Rear Inner Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement .
1	Radio Rear Inner Speaker Fastener CAUTION: Refer to Fastener Caution .
2	Radio Rear Inner Speaker Procedure Disconnect the electrical connectors. Lift the front edge of the speaker and pull forward.

Callout

Component Name

Preliminary Procedure
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement .

Radio Rear Inner Speaker Fastener

CAUTION: Refer to Fastener Caution .

Radio Rear Inner Speaker

Procedure

Disconnect the electrical connectors.
Lift the front edge of the speaker and pull forward.
