Installation Procedure

  1. Evaporative Emission Front Pipe (2)» Install

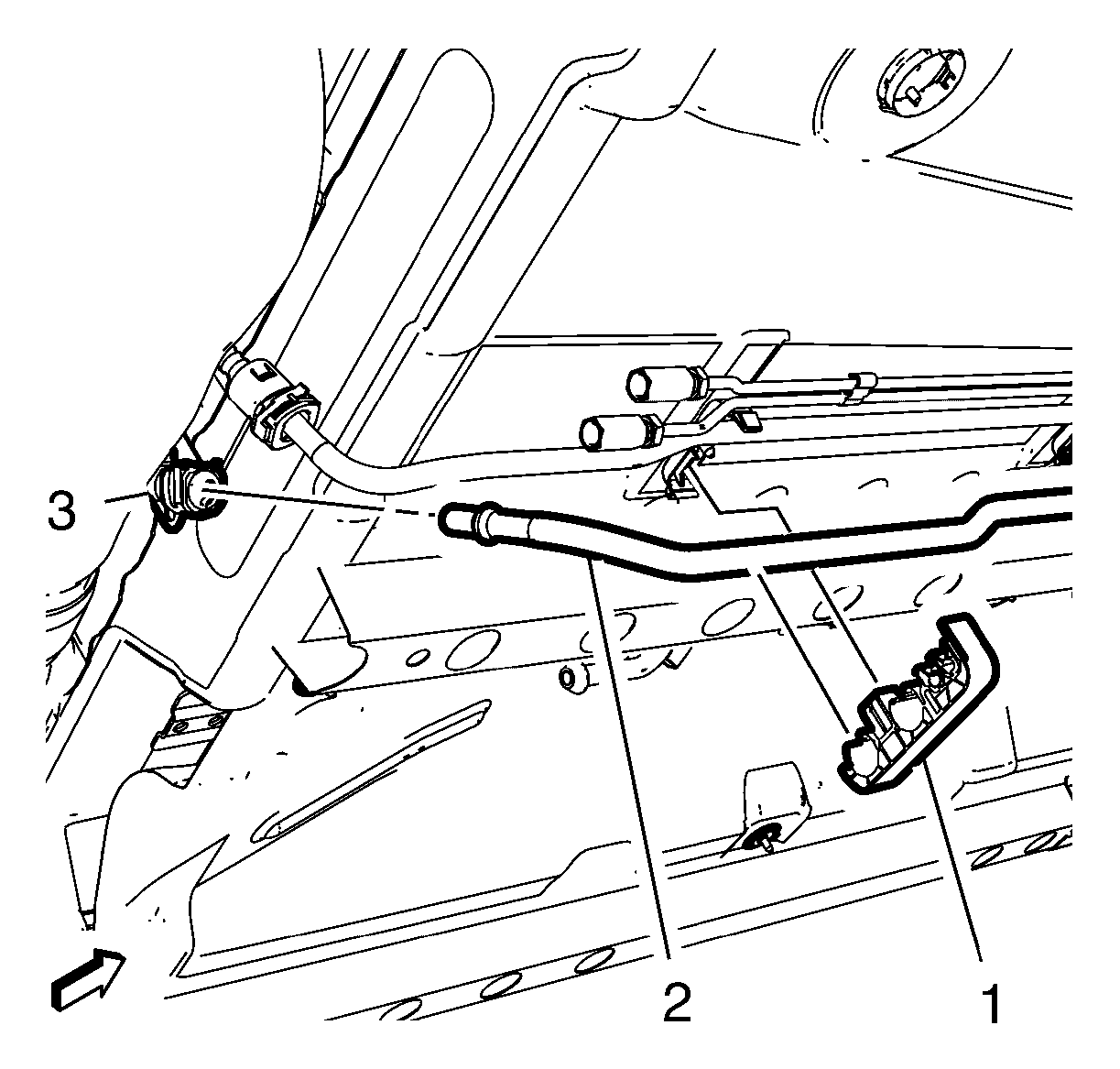

    Fig 1: Evaporative Emission Front Pipe And Retainer
    GM3682283Courtesy of GENERAL MOTORS COMPANY
  2. Evaporative Emission Front Pipe (2) @ Evaporative Emission Canister Purge Pipe (3)» Install - Plastic Collar Quick Connect Fitting Service
  3. Retainer (1)» Remove
  4. Install the 4 evaporative retainer clips (1).

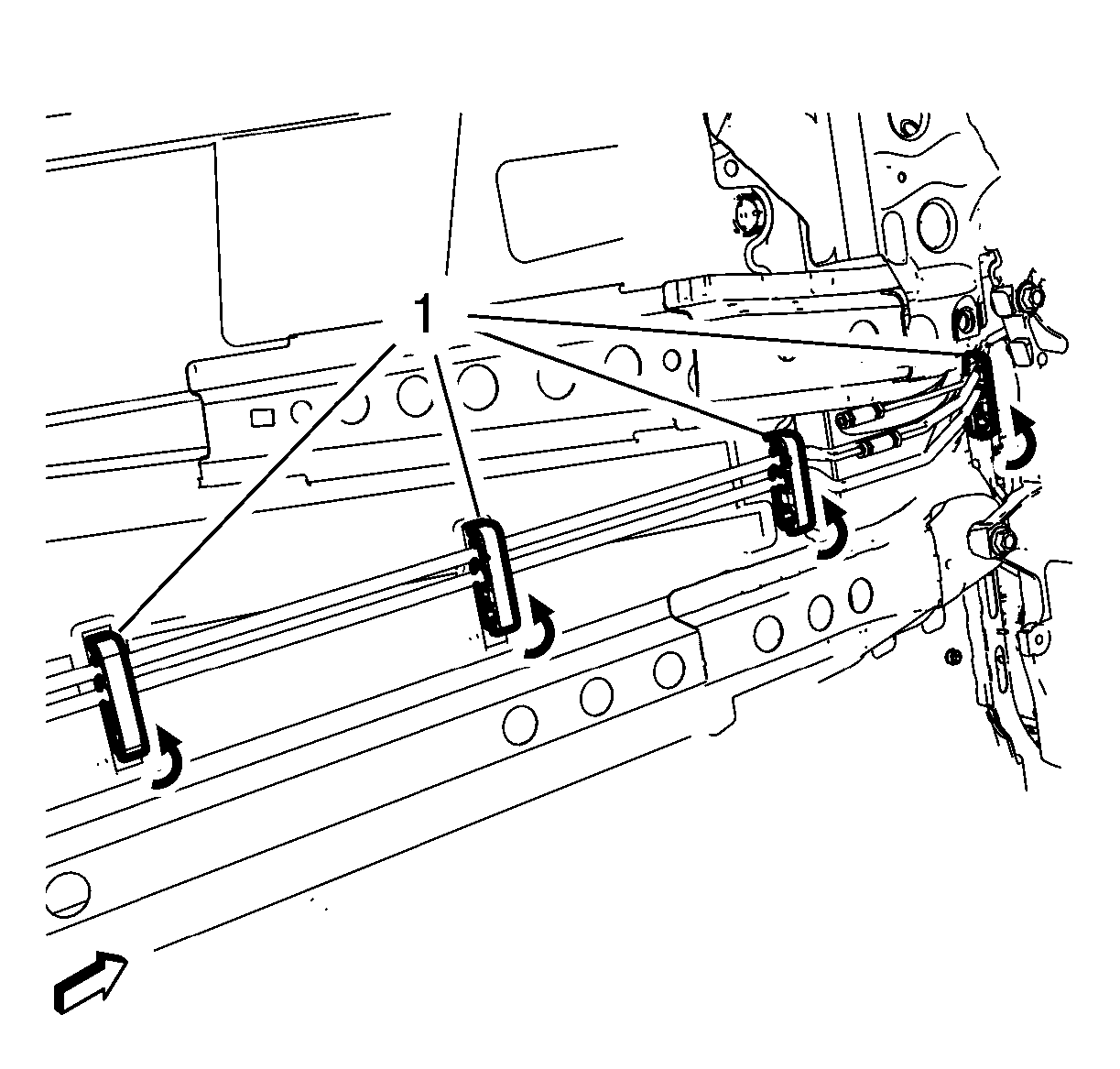

    Fig 2: Evaporative Retainer Clips
    GM3682395Courtesy of GENERAL MOTORS COMPANY
  5. Evaporative Emission Front Pipe (1) @ Bulkhead Clip (3)» Install

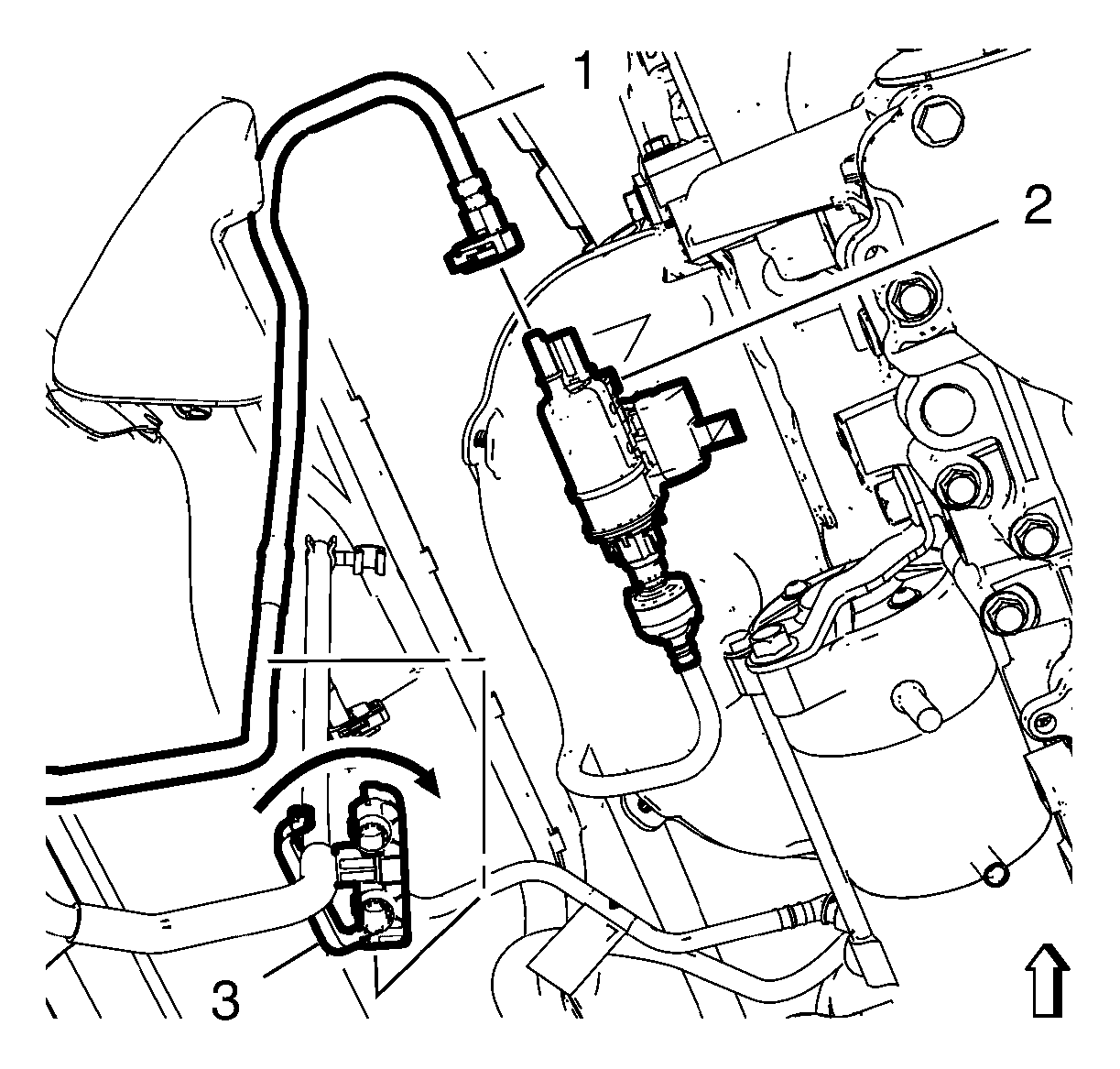

    Fig 3: Evaporative Emission Front Pipe And Bulkhead Clip
    GM3682398Courtesy of GENERAL MOTORS COMPANY
  6. Evaporative Emission Front Pipe (1) @ Evaporative Emission Canister Purge Solenoid Valve (2)» Install - Plastic Collar Quick Connect Fitting Service
  7. Lower the vehicle.
  8. Dash Upper Extension Panel Opening Cover Replacement » Install
  9. Battery Negative Cable Disconnection and Connection » Connect
