Human Machine Interface and Display, Power, Ground, Serial Data (IO5 or IO6)

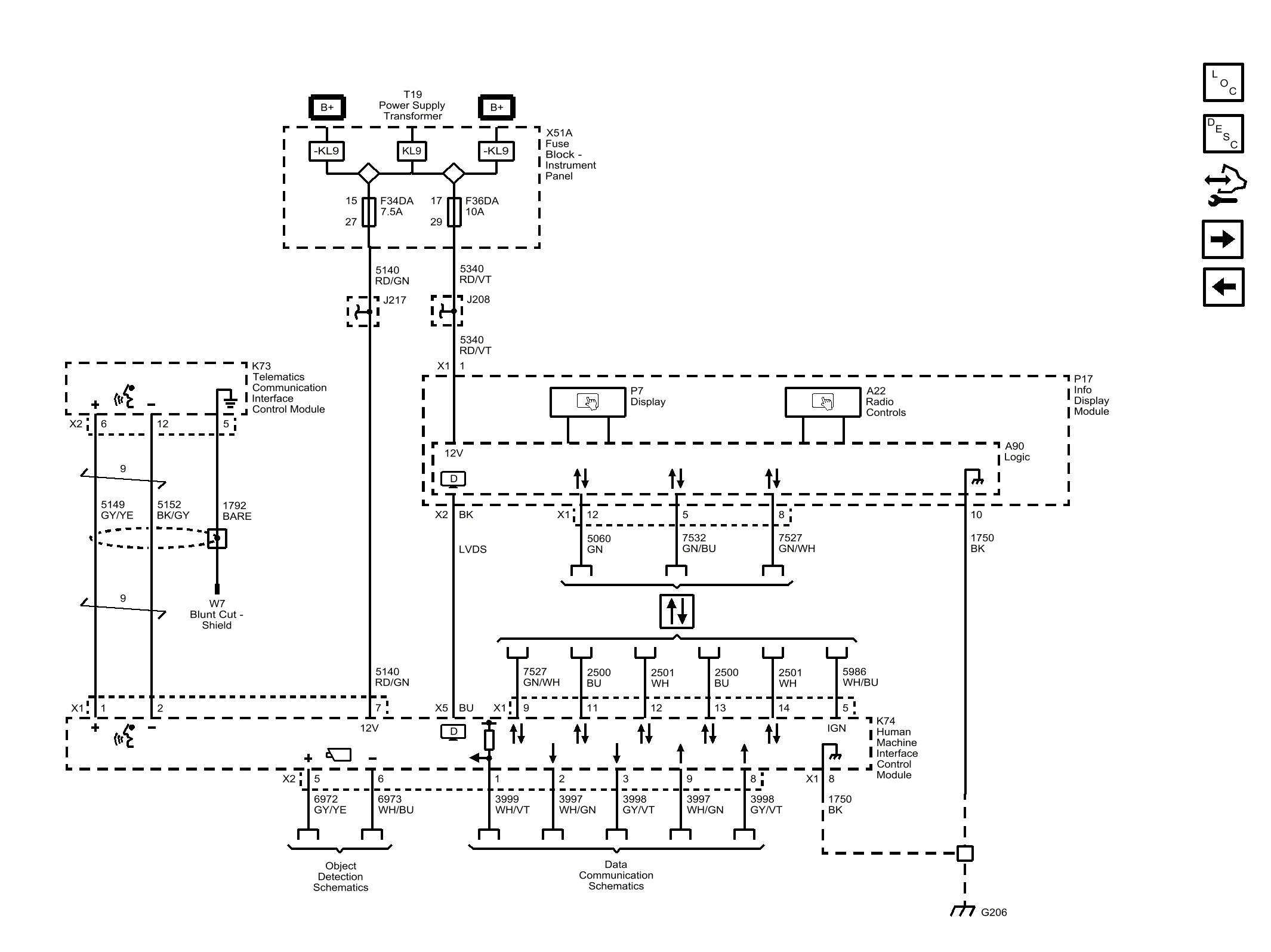

Fig 1: Human Machine Interface and Display, Power, Ground, Serial Data (IO5 or IO6)

GM4281576

Courtesy of GENERAL MOTORS COMPANY
