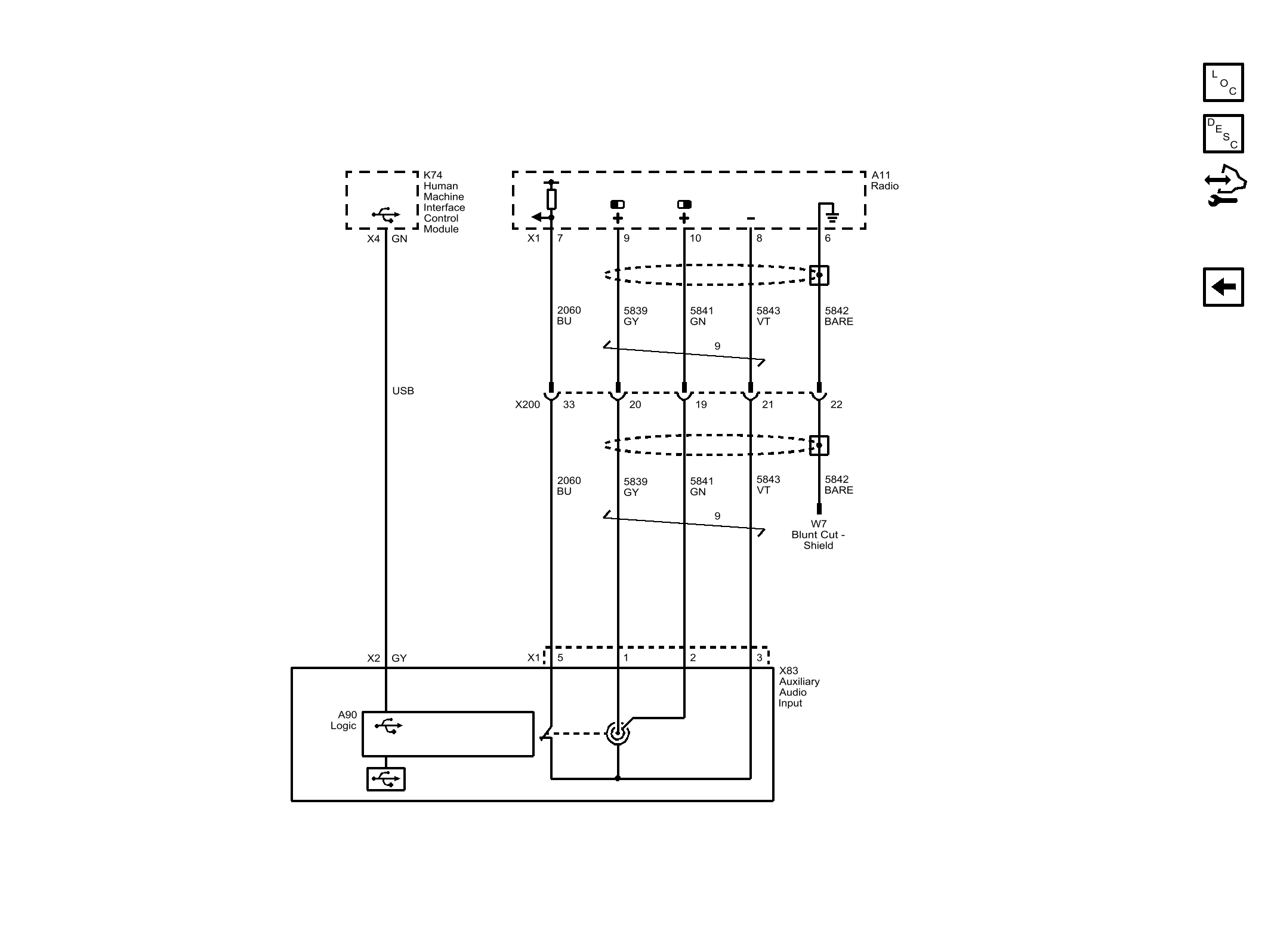

Home >> Chevrolet >> 2016 >> Cruze LS, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Cellular System, Entertainment System And Navigation System >> Schematic Wiring Diagrams >> Radio/Navigation System Wiring Schematics >> Audio Input (IO5/IO6)
