Radio Replacement (IOA)

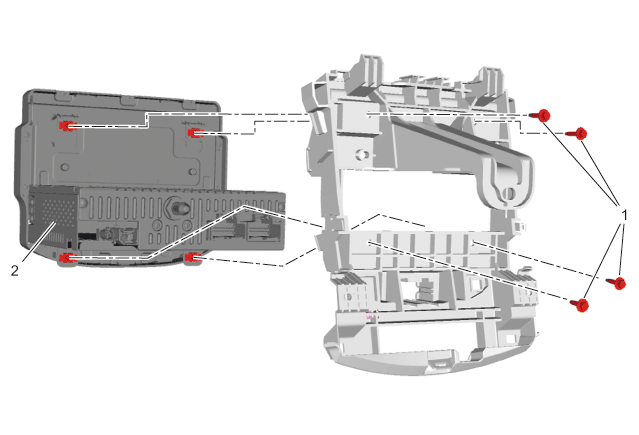

Fig 1: Radio (IOA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Battery Negative Cable Disconnection and Connection Digital Radio Receiver Bracket Replacement
1	Radio Bolt [4x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Radio

Callout

Component Name

Preliminary Procedures

Radio Bolt [4x]

CAUTION: Fastener Caution

Tighten
2.5 N.m (22 lb in)

Radio
