Radio Front Speaker Replacement

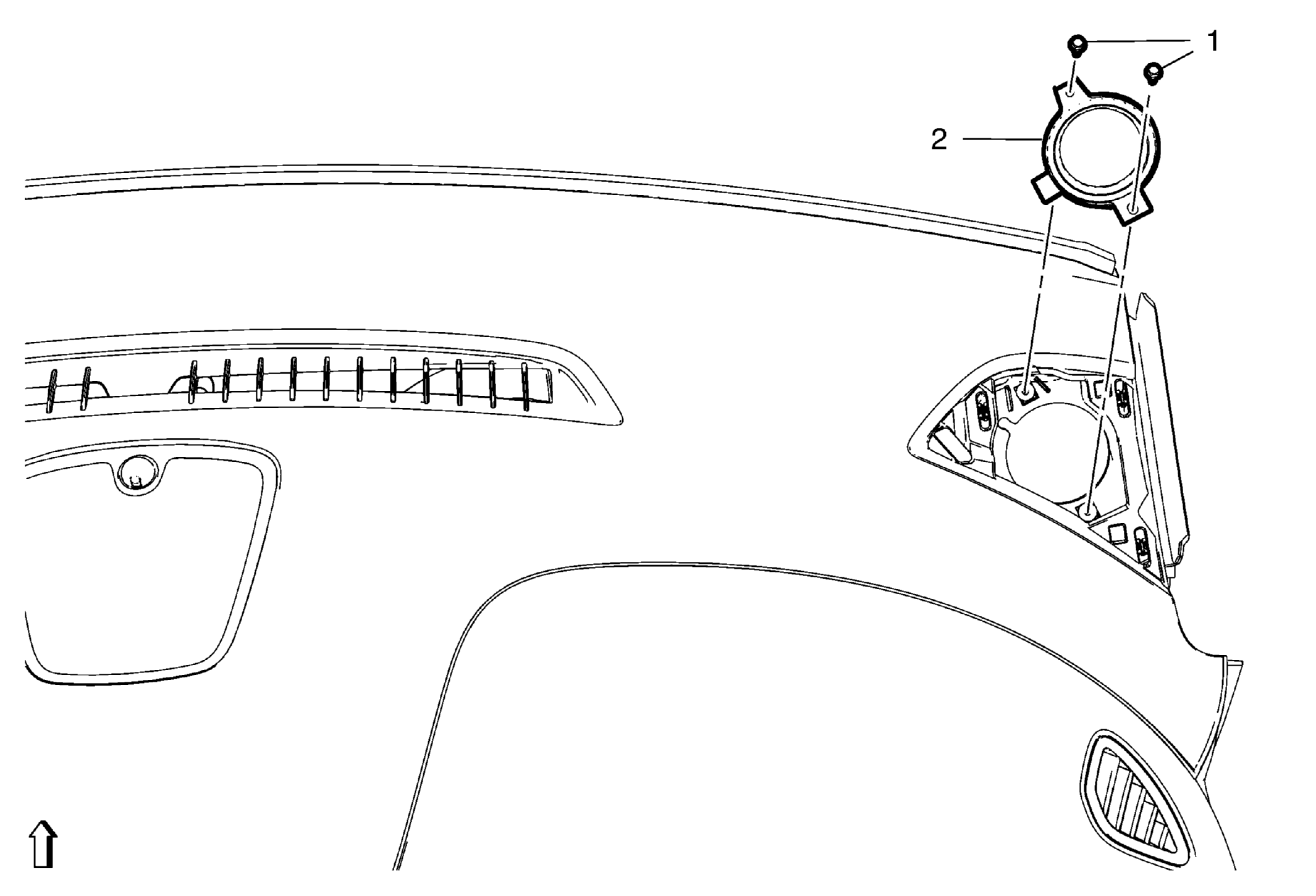

Fig 1: Radio Front Speaker
GM3680274Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Radio Front Speaker Grille Replacement
1 Radio Front Speaker Bolt [2x]
CAUTION: Fastener Caution

Tighten
2.5 N.m (22 lb in)
2 Radio Front Speaker
Procedure
Disconnect the electrical connector.
