Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

  1. Loosen the steering linkage inner tie rod nut (1).

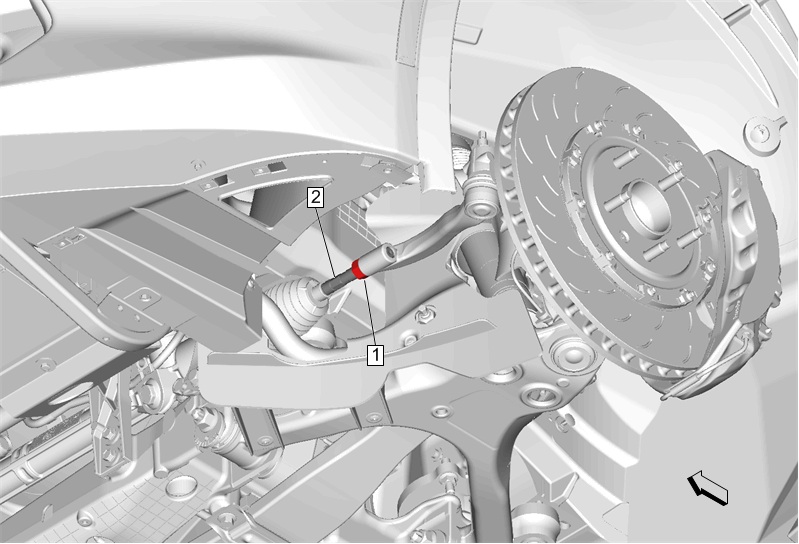

    Fig 1: Steering Linkage Inner Tie Rod Nut
    GM4488979Courtesy of GENERAL MOTORS COMPANY
  2. Rotate the inner tie rod (2) to the required toe specification setting. Refer to Wheel Alignment Specifications
  3. Tighten the steering linkage inner tie rod nut to 75 N.m (55 lb ft).
    CAUTION: Refer to Fastener Caution .
  4. The steering angle sensor must be re-centered. Refer to Steering Angle Sensor Centering
