Module Power, Ground and Subsystem References

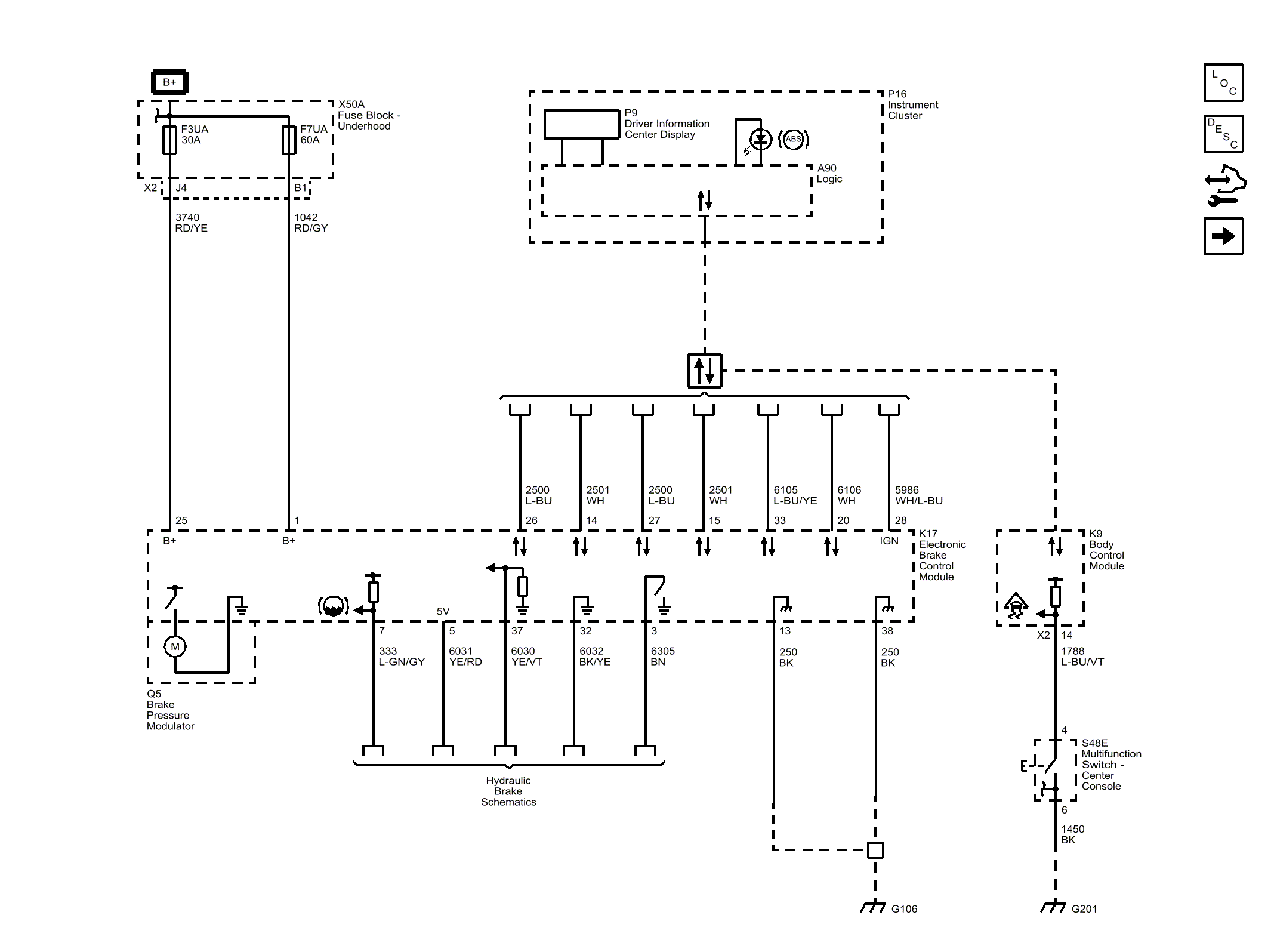

Fig 1: Module Power, Ground and Subsystem References

GM4076837

Courtesy of GENERAL MOTORS COMPANY
