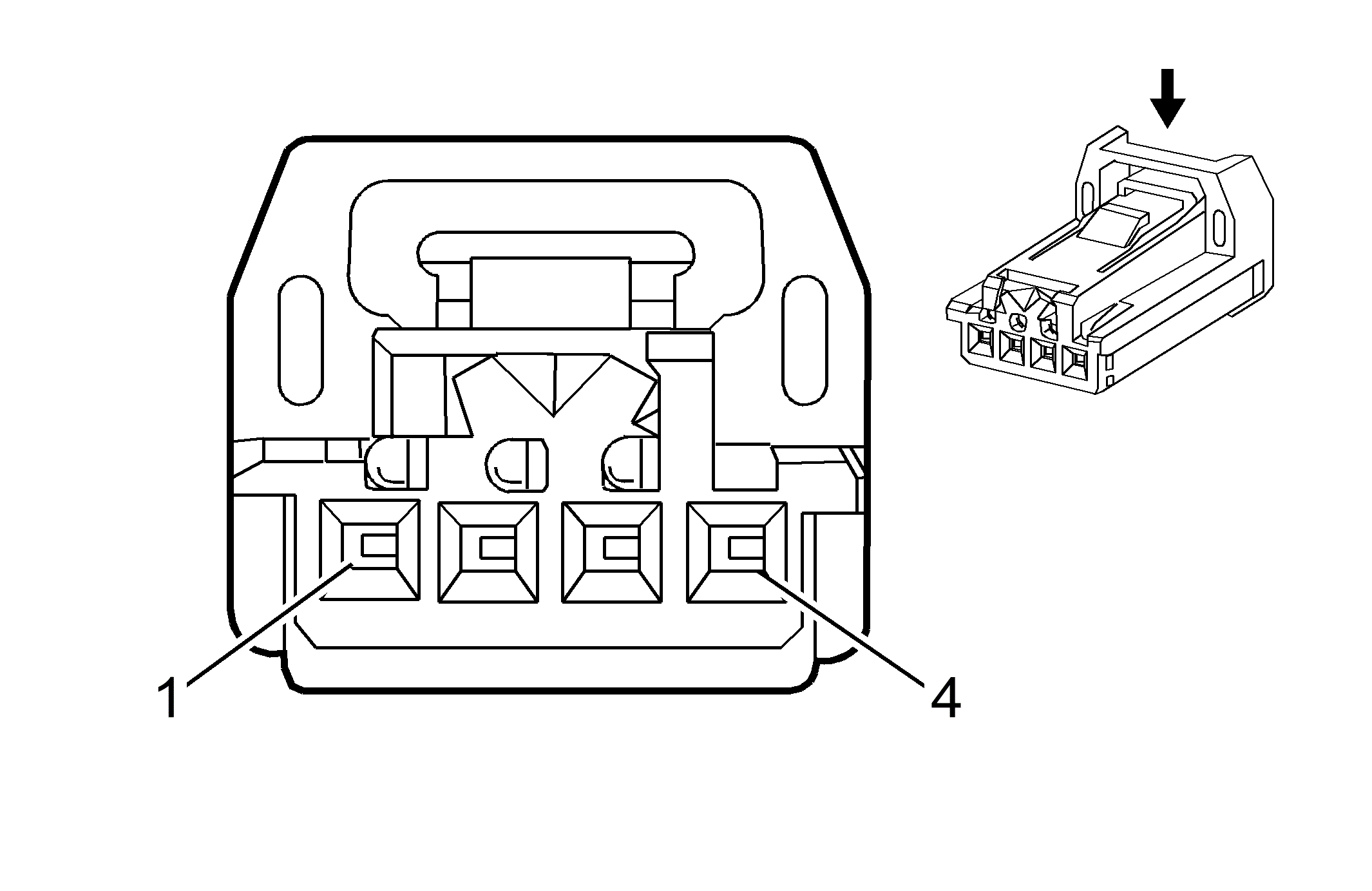

K89 Immobilizer Control Module
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: TH04FW-NH
- Service Connector: Service by Harness - See Parts Catalog
- Description: 4-Way F 1.5 Series, (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Service Connector: Service by Harness - See Parts Catalog |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
L-GN |
PF03 |
Immobilizer Transmit |
I |
- |
| 2 |
- |
BK |
PFE1 |
Ground |
I |
- |
| 3 |
- |
PK |
PF02 |
Immobilizer Receive |
I |
- |
| 4 |
- |
RD |
PF01 |
Battery Positive Voltage |
I |
- |
