Fuel Tank Vent Valve Hose Replacement (Fuel Tank Fuel Pump Module)

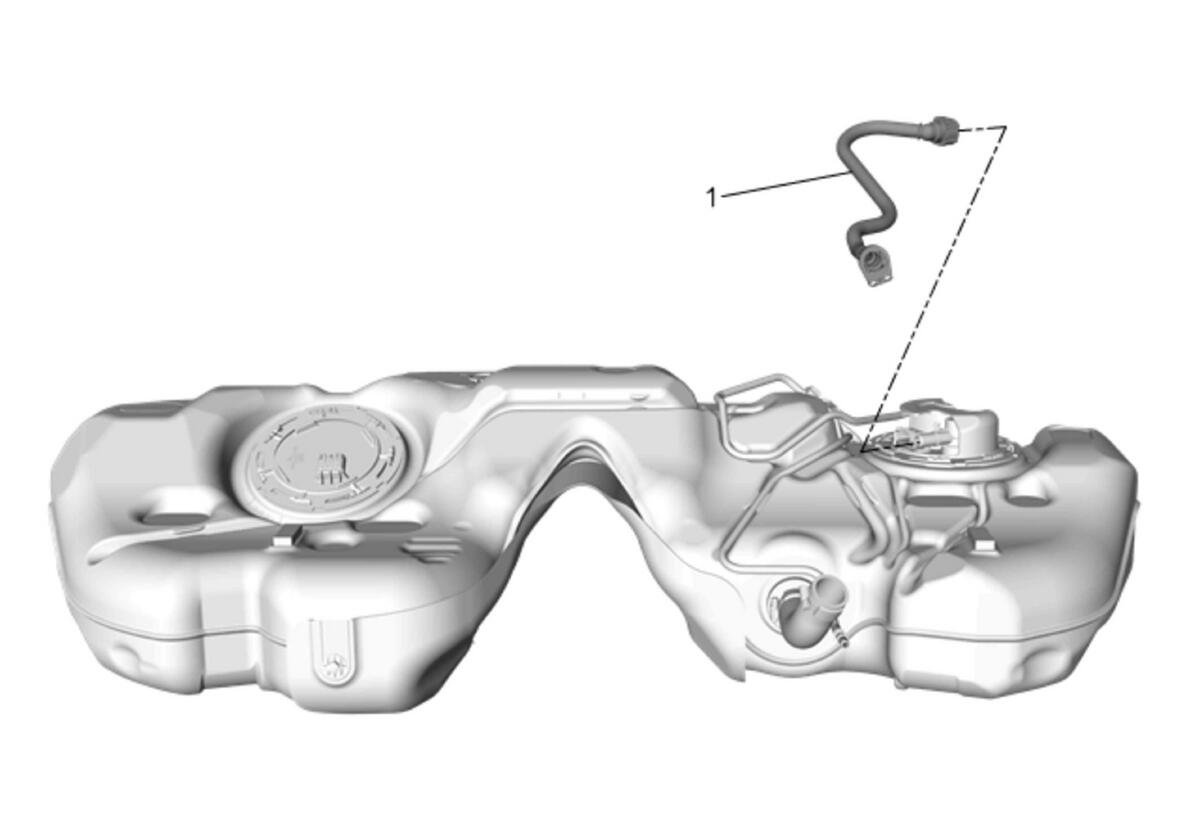

Fig 1: Fuel Tank Vent Valve Hose (Fuel Tank Fuel Pump Module)
GM4179451Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Replacement .
1 Fuel Tank Vent Valve Hose
Procedure
Disconnect the fuel tank vent valve hose from the fuel tank fuel pump module. Plastic Collar Quick Connect Fitting Service
