Fuel Tank Filler Hose Replacement

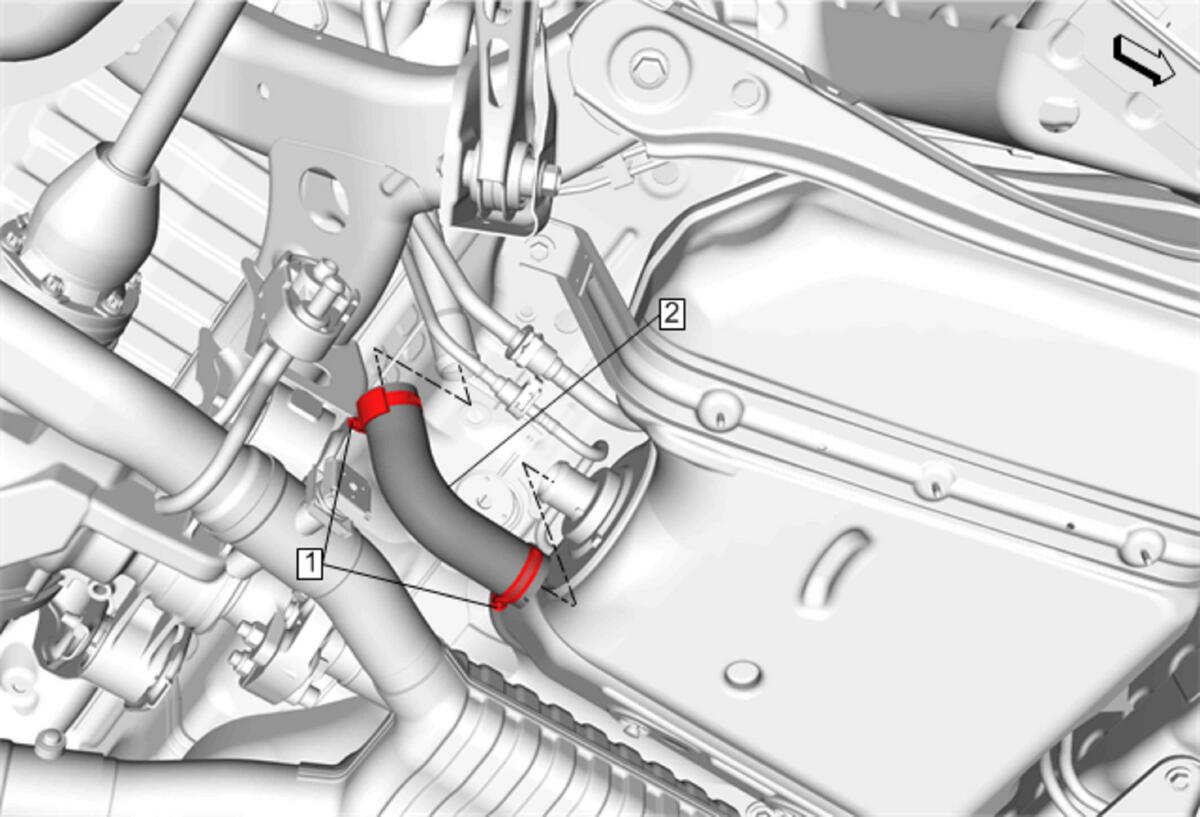

Fig 1: Fuel Tank Filler Hose
GM4180584Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle (Base)Lifting and Jacking the Vehicle (HP) .
1 Fuel Tank Filler Hose Clamp (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
3.5 N.m (31 lb in)
2 Fuel Tank Filler Hose
