Engine Exhaust Flow Control

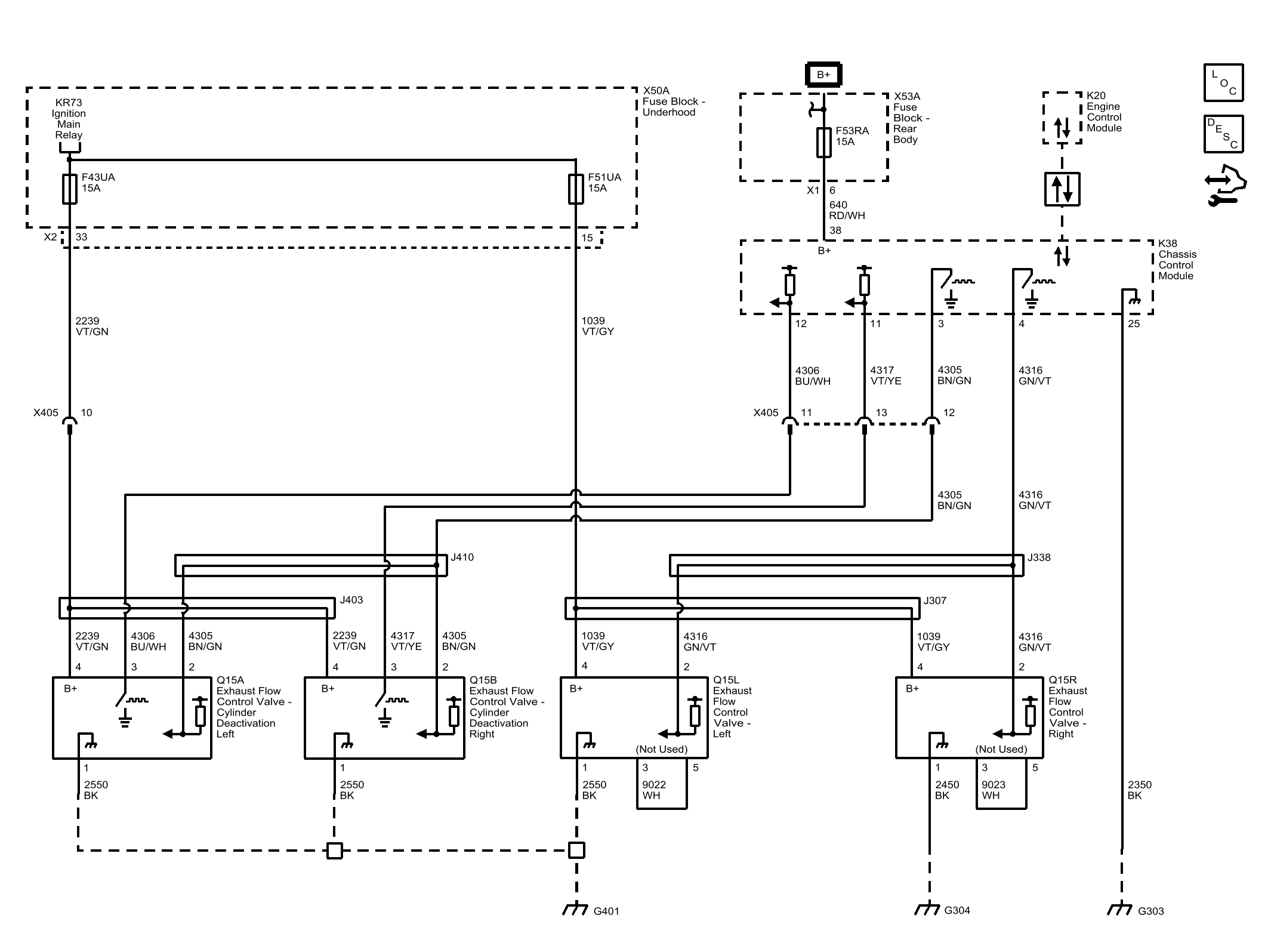

Fig 1: Engine Exhaust Flow Control
GM4232255Courtesy of GENERAL MOTORS COMPANY
