Front Side Door Window Regulator Motor Replacement

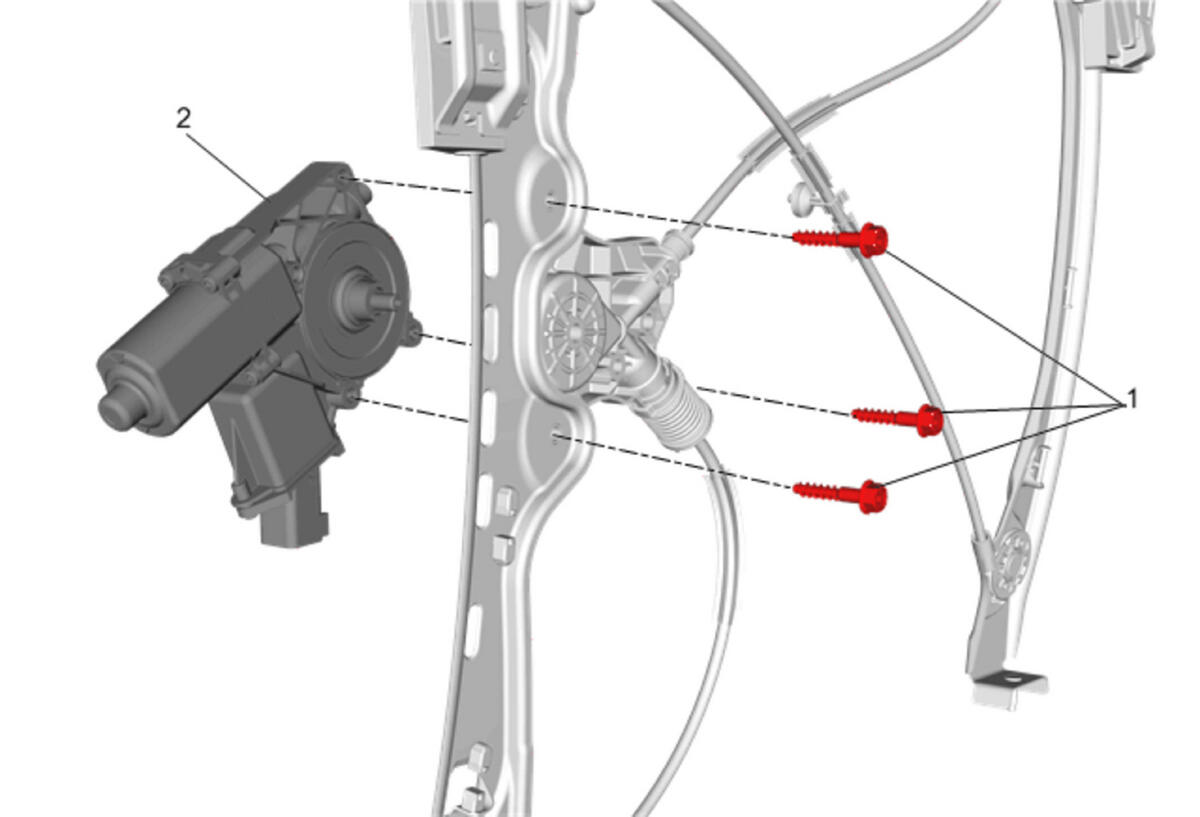

Fig 1: Front Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Window Regulator Replacement
1	Front Side Door Window Regulator Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Front Side Door Window Regulator Motor Procedure Window Motor Programming - Express Function . NOTE: Inspect the door window for proper operation before installing the door trim.
